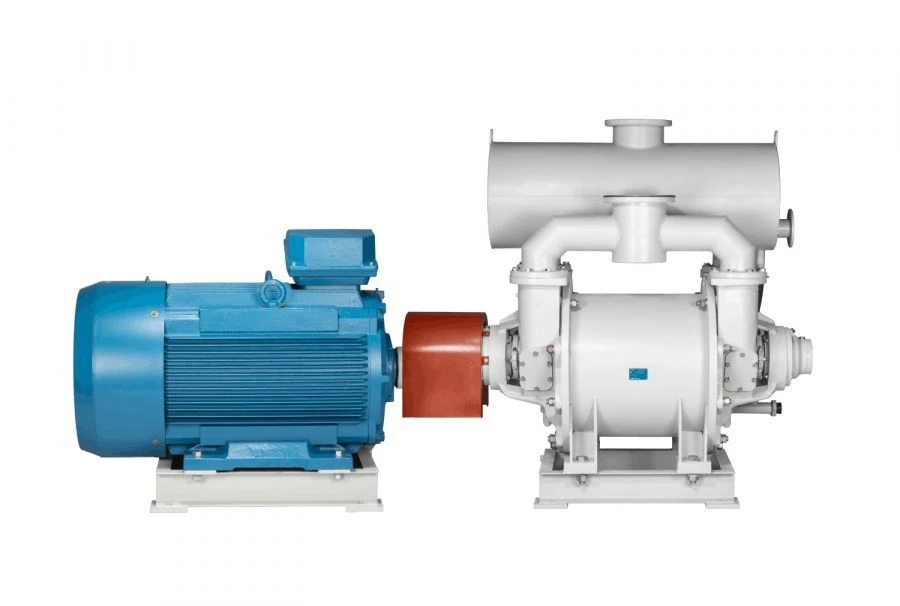

Water ring vacuum pump 2???-50(?)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
For hazardous production facilities.
Water ring vacuum pump 2???-50(?) with capacity of 50 m3/min, are designed to create and maintain vacuum in the range of operating pressures from atmospheric to 10 KPa in the apparatuses of various process lines of chemical, petrochemical and other industries.
They are designed for operation with liquids and gases and vapours insoluble in them, not aggressive to the materials of construction of the pump, not explosive and toxic. The working liquid in the pump is water. The pump is made of stainless steel or carbon steel. Type of climatic execution of the pump is UHL4 and O4 according to GOST 15150-69.
Water ring vacuum pump 2???-50(?) have high reliability in operation due to constructive simplicity, as they consist of a small number of parts.
Water ring vacuum pump 2???-50(?) with capacity of 50 m3/min, are designed to create and maintain vacuum in the range of operating pressures from atmospheric to 10 KPa in the apparatuses of various process lines of chemical, petrochemical and other industries.
They are designed for operation with liquids and gases and vapours insoluble in them, not aggressive to the materials of construction of the pump, not explosive and toxic. The working liquid in the pump is water. The pump is made of stainless steel or carbon steel. Type of climatic execution of the pump is UHL4 and O4 according to GOST 15150-69.
Water ring vacuum pump 2???-50(?) have high reliability in operation due to constructive simplicity, as they consist of a small number of parts.
Specifications
Capacity reduced to initial conditions at initial pressure 0.02MPa
45 (+/-5) m3/min
Rotational speed, synchronous
600 rpm3
Motor power, not more
110 kW
Water consumption
75 (+/-7.5) dm3/min3
Overall dimensions d/w/h/h
3140/1050/1800 mm
Weight, not more
2750 kg
