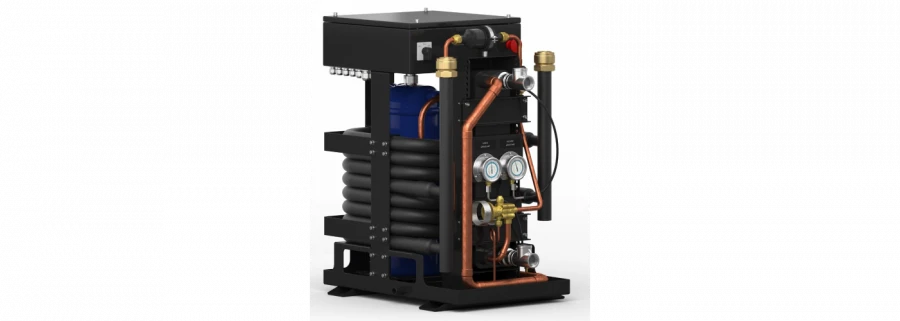

Water-cooling machine MV-20M, TSIUL.701328.105, TSIUL.701328.100 TU

Air Conditioning Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Machines water-cooling MV are designed for cooling of circulating coolant supplied to the equipment of air conditioning systems on ships and vessels of all types, classes and purposes, gas production platforms, floating drilling rigs, fixed offshore platforms, fortification structures, civil and industrial construction objects.

Specifications

Cooling capacity 20 kW

Coolant temperature at evaporator outlet 7±1 °C

Temperature of coolant at the evaporator inlet 11±1 °C

Coolant flow rate, m3/h, ±10% 4.45

Intake water flow rate, m3/h, ±10% 4.46

Hydraulic resistance of the coolant circuit 40

Hydraulic resistance of the intake water circuit 40

Operating pressure of the coolant 1 MPa

Working pressure of bottom water 1 MPa

Number of compressors 1 pc

Theoretical suction volume of the compressor m3/h, max. 21.9

Power consumption 5.15 kW

Current consumption 10.4 A

Maximum current consumption 18.1 A

Weight in dry state 125 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
