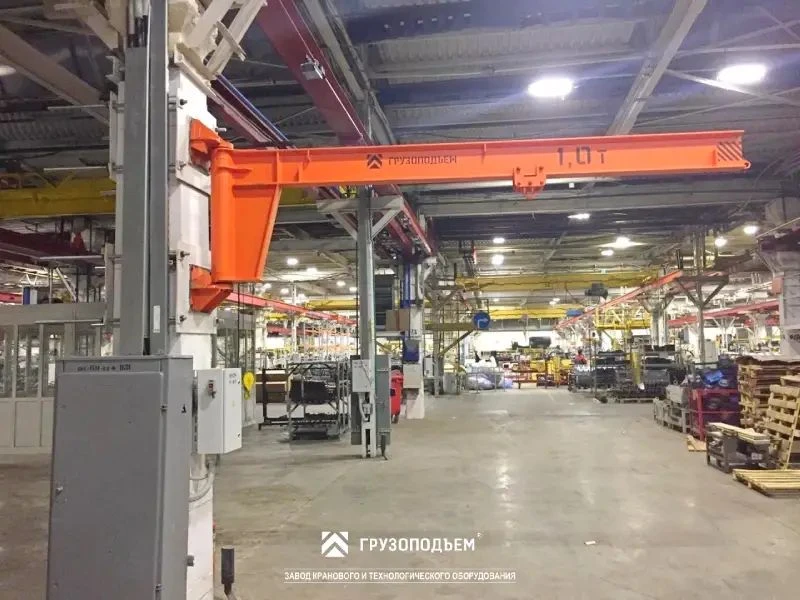

Wall-Mounted Jib Cranes for Efficient Load Handling in Various Environments

Equipment is designed for mechanisation of works on lifting and moving of various cargoes. It is used both indoors and outdoors at ambient temperatures from -40°C to +40°C. It is used in conditions of limited height of the room, when freestanding lifting structures may occupy the working space.

They are fixed to the supporting column or to the wall of the room by means of anchor bolts. The advantage of jib cranes is the convenience of working in a limited working area, ease of installation, no need to provide crane tracks. Main characteristics: g / n up to 3.2 tonnes, jib rotation angle up to 180 °, jib outreach up to 10.0 m, lifting height up to 36.0 m, the type of drive to move manual / electric, type of control: cable control panel / radio control, mode of operation according to ISO 4301/1: A2 and above, crane version: OPI / PBI / VZI.

By default the equipment is painted in orange colour RAL 2004. Other colours are available on request.
