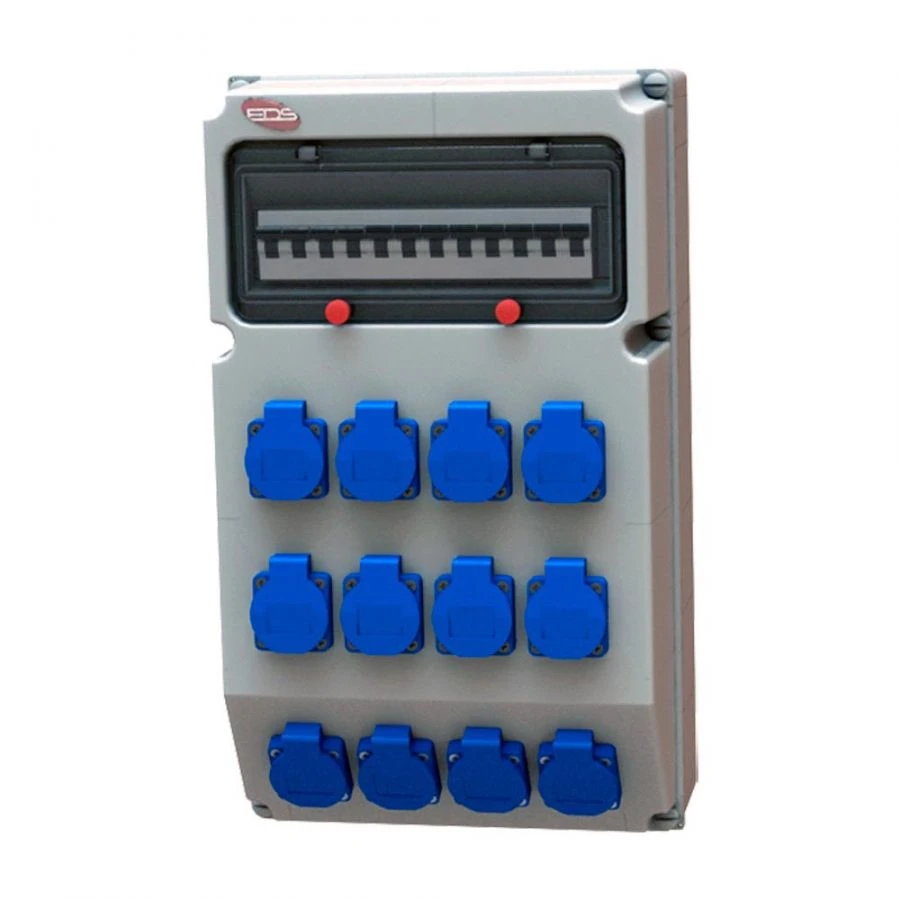

Wall-Mounted Combination Distribution Module (Power Outlet Panel) T P03.001 for Efficient Power Distribution

Combination of CEE and Schuko sockets in a halogen-free plastic (ABS) hinged enclosure with safety automatics located under a UV-protected window. The switchgear is designed for professional activities of construction, production, repair and other organisations connected with simultaneous use of several units of power tools and electrical equipment. Specification of the hinged distribution combination module T P03.001: Degree of protection: IP 54/44 Enclosure: ABS plastic (WxWxH) 504x297x177 Input: 16 mm² L terminal x 3 pcs.; 16 mm² N terminal x 1 pc.; 16 mm² PE terminal x 1 pc.; PG 29 gland (for cable diameters 18-25mm) Connectors: Schuko PCE Blue x 12 pcs.

Automatics: Legrand 6kA 16A 1p x 12 pcs. Rated voltage AC 380 V Maximum power 12x 3,6 kW.
