VR07D621K - disc varistor, 385 V, 1.2 kA (8/20), cat. no. K2EV331C5P0

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

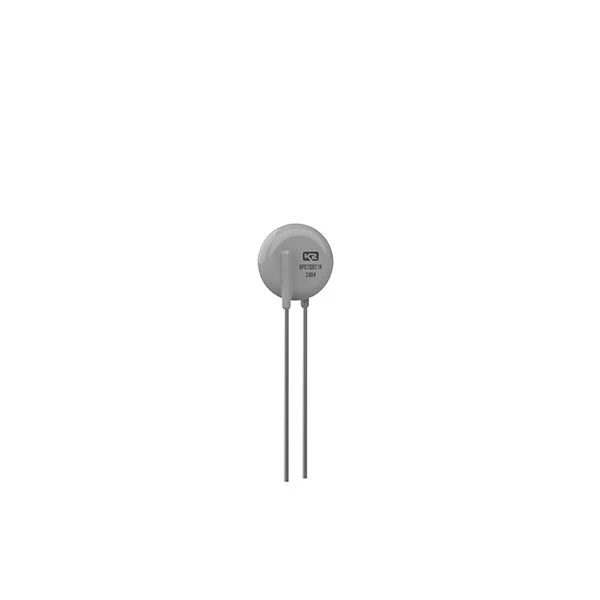

VR07D621K - varistor of KVS series, 385 V, 1.2 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Classification rated voltage at 1 mA current 620 V

Maximum AC operating voltage 385 V

Maximum continuous operating voltage 505 V

Permissible amplitude of a single current pulse (8/20 µs) 1200 A

Maximum pulse energy (2 ms) 26

Operating temperature range -60...85 °C

Maximum disk diameter 9 mm

Maximum disk thickness 6.5 mm
