Voltage presence indicator Systeme VPIS-20
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

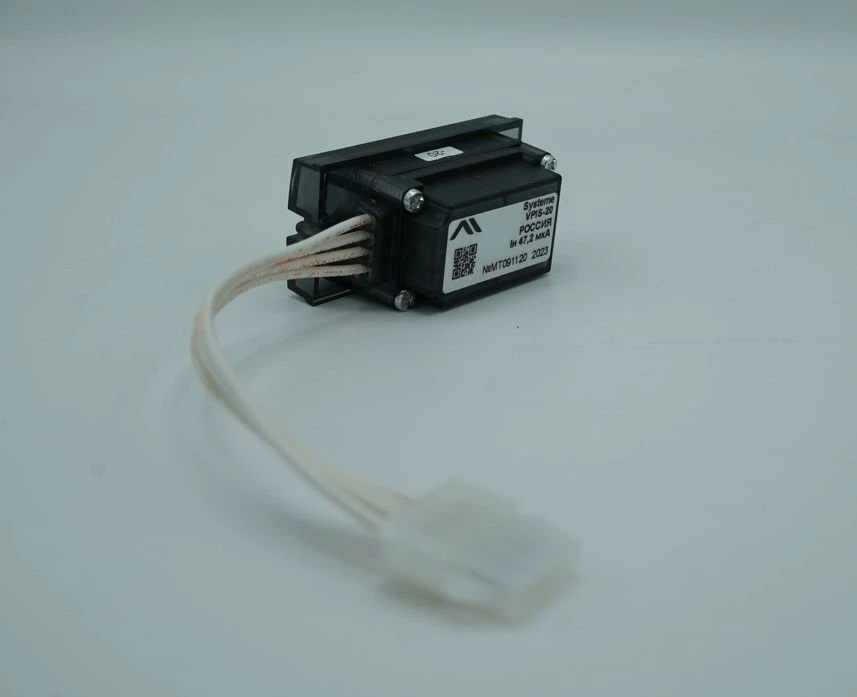

The Systeme VPIS-20 voltage presence indicator is designed to indicate the presence of voltage on the input and output lines of switchgears of medium voltage 6-20 kV networks. In this version the nominal voltage is 20 kV, there is no external wire for connection to the short-circuit current indicator. The device is connected to the outputs of the capacitor of the feed-through insulator of the switchgear "RME" (capacity (305) pF) by means of a cable (length 200 mm) and indicates the presence of voltage in the network by three red LEDs.
Specifications
Number of inputs
Three
Degree of protection
IP3X
Climatic operating conditions
UHL3.1
Rated current
47,2 µA
Operating temperature range
From minus 25 C to plus 85 C
Relative humidity
Up to 98 % at plus 25 C
