Voltage presence indicator Systeme VPIS-10-VO

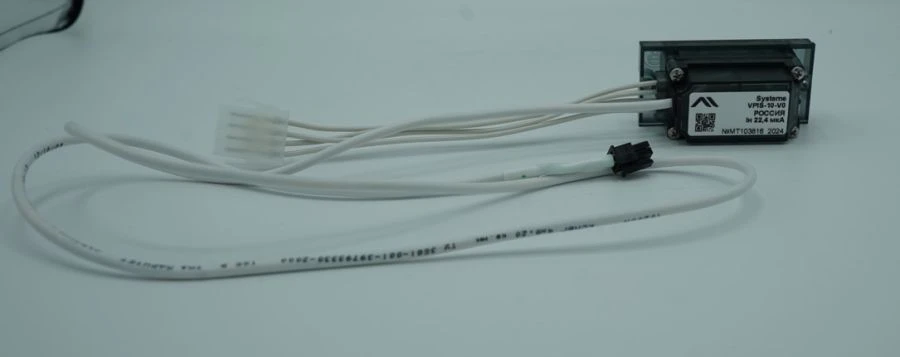

The Systeme VPIS-10-VO voltage presence indicator is designed to indicate the presence of voltage on the input and output lines of medium-voltage 6-20 kV switchgears. In this version the nominal voltage is 10 kV. The device is connected to the outputs of the capacitor of the feed-through insulator of the switchgear "RME" (capacity (305) pF) by means of a cable (length 200 mm) and indicates the presence of voltage in the network by three red LEDs. For this version, a cable (length 1000 mm) is provided for connection to the short-circuit current flow indicator.
