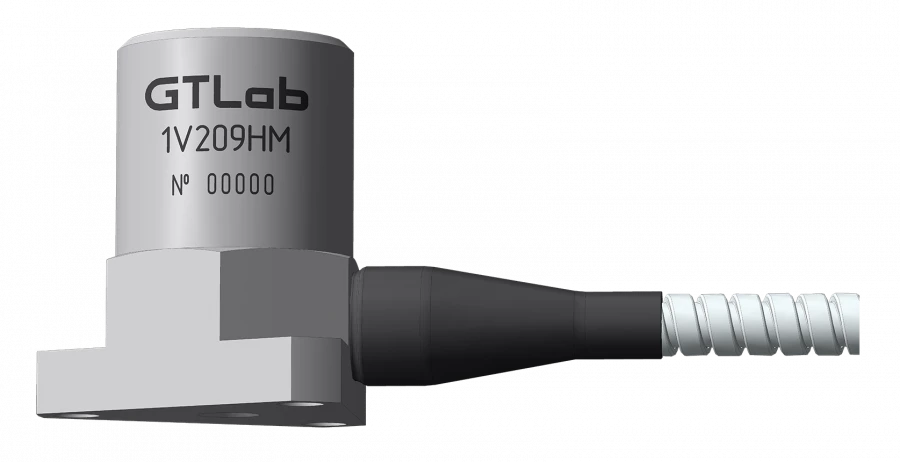

Voltage Output Accelerometer 1V209HM-100 for Vibration and Shock Measurement
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Voltage output accelerometers are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Industrial vibration acceleration transducers with voltage output are designed for monitoring the state of industrial equipment in conditions of strong industrial interference.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Acceleration conversion factor
10 mV/(m-s-2)
Relative transverse conversion ratio
< 5 %
Maximum value of the measured acceleration amplitude
± 500 m/s2
Maximum impact (peak value)
± 5,000 m/s2
Operating temperature range
-55 ... +125 °?
Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons
0.3 ... 12,000 Hz 0.5 ... 8,000 Hz 1 ... 5,000 Hz
Natural frequency in fixed state
> 25 kHz
Noise level, RMS (1 Hz ÷ 10 kHz)
0.002 m/s2
Output impedance
< 100 ohms
Power supply: ? voltage ? current
+ (18 ... 30) V 2 ... 20 mA
DC output voltage level
8 ... 13 ?
Coefficient of influence of ambient temperature
± 0,2 %/ °?
Time to establish operating mode
4 ?
Housing material
stainless steel
Weight (without cable)
90 ?
Electrical strength of insulation between cable body and conductors
500 ?
Pyro-sensitivity: ? from 0.2 Hz ? from 3 Hz
0.002 g/°C 0.0005 g/°C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
