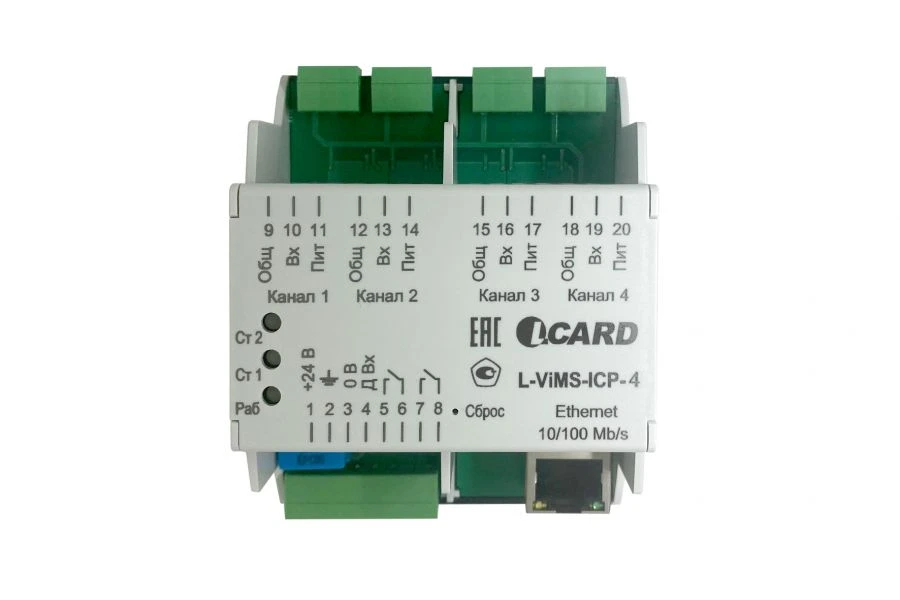

Voltage Measurement Module L-ViMS-ICP-4-1 for Accurate DC and AC Voltage Measurements
Manufacturer:
L CARD LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
The modules are designed for DC voltage measurements, AC voltage measurements in the presence of a constant component of positive polarity and measurements of the variable component of voltage from the outputs of ICP-sensors in four measurement channels, as well as control of electrical circuits in two switching channels by means of electronic keys, in addition, the modules have one discrete input designed for connection of external devices.
They are part of the L-ViMS vibration control measuring system.
They are part of the L-ViMS vibration control measuring system.
Specifications
DC voltage measurement range
0 to 20 V
Limits of permissible reduced error of DC voltage measurements
±0,2 %
Measurement range of RMS value of AC voltage
0.001 to 5 V
Frequency range
10 to 40000
Tolerance limits of relative error of measurements of RMS value of AC voltage
from ±0.3 %
Number of measuring channels
4 pcs
Number of switching channels
2 pcs
Number of digital inputs
1 pcs
Number of Ethernet interface ports
1 pcs
DC current value for ICP sensor power supply
(4.0 ± 0.1) mA A
Dimensional characteristics
75x65x100 mm
Weight
0,2 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
