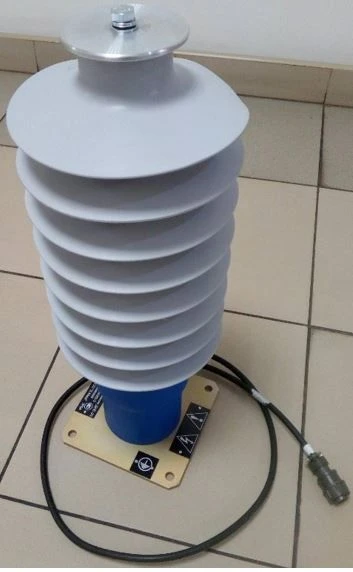

Voltage divider DNE-25
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Voltage dividers DNE-25 (hereinafter - DNE-25) are designed for large-scale conversion of high AC voltage (single-phase AC network with nominal voltage of 25 kV, AC frequency 50 Hz) into AC voltage for supply to the inputs of low-voltage measuring devices.
The principle of operation of the DNE-25 is based on the method of capacitive division of high AC voltage. The high-voltage arm of the DNE-25 is formed by its structural elements, while the low-voltage arm consists of precision capacitors located on a printed circuit board. On the same circuit board is a voltage amplifier that provides matching of the output impedance of the DNE-25 to the load. The DNE-25 is powered from a unipolar DC source.
The principle of operation of the DNE-25 is based on the method of capacitive division of high AC voltage. The high-voltage arm of the DNE-25 is formed by its structural elements, while the low-voltage arm consists of precision capacitors located on a printed circuit board. On the same circuit board is a voltage amplifier that provides matching of the output impedance of the DNE-25 to the load. The DNE-25 is powered from a unipolar DC source.
Specifications
AC input voltage range (RMS value)
15...30 kV
Rated value of AC frequency
SBVVBG
Actual value of division factor at 50Hz AC frequency
3500...4500
Limits of permissible basic relative error of fission coefficient
±0,5 %
Limits of permissible additional relative error of division coefficient caused by change of ambient temperature
±0,5 %
Angle of phase shift between input and output AC voltage at AC frequency 50 Hz in the operating range
-179,7±0,2
DC supply voltage
5.5...5.7 V
Power consumption
0.5 W
Overall dimensions (length×width×height)
160×160×440 mm
Weight
4.5 kg
Average MTBF
20000
Service life
20 a
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
