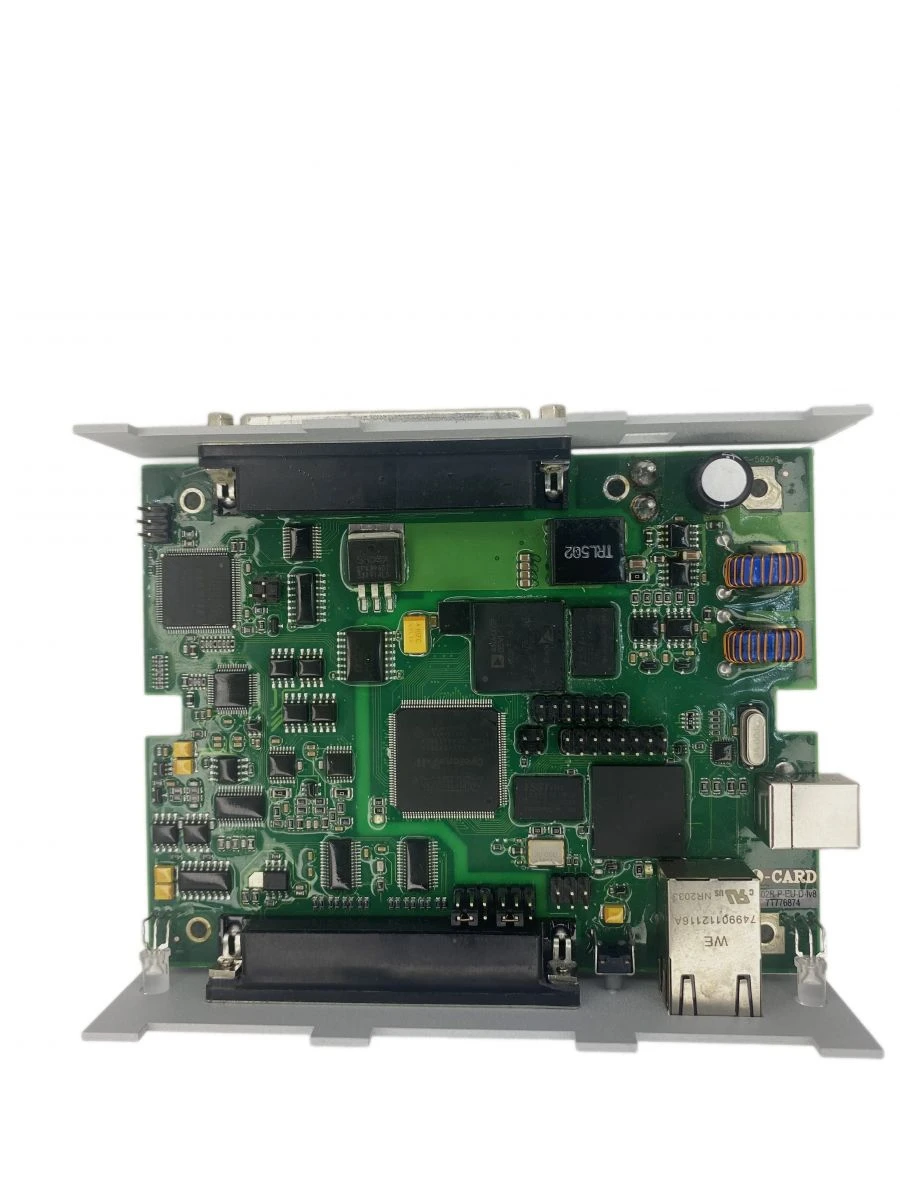

Voltage Converter Measuring Device "Set E-502-X-EU-D1-I" for Accurate Voltage Measurement

Electrical Measurement Systems

Manufacturer:L CARD LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for measurement of direct and alternating electric current voltage, as well as for input, output and processing of analogue and digital information in measuring devices and systems based on personal computers.

Specifications

Average service life

10 year

MTBF

20000

Weight

0,15 kg

Overall dimensions

140×117×25 mm

Power consumption

7,5 W

DC supply voltage

11 to 24 V

Number of digital outputs

16 pcs

Number of digital inputs

17 pcs

DC input electrical resistance

20*10(6) ohm

In-phase noise reduction factor

Tolerance limits of relative basic error of ADC conversion frequency

±0,005 %

Tolerance limits of relative basic error of AC frequency reproductions

±0,005 %

Tolerance limits of relative basic error of AC voltage reproductions

from ±0.2 %

Reproduction range of AC voltage frequency

0.01 to 100

AC voltage reproduction range

0.001 to 3.5 V

Tolerance limits of the reduced basic error of DC voltage reproductions

±0,3 %

DC voltage reproduction range

-5 to +5 V

Tolerance limits of relative basic error of AC voltage measurements

from ±0.15 %

Frequency range of AC voltage

0.01 to 999

AC voltage measurement range

0.0002 to 7 V

Tolerance limits of the reduced basic error of DC voltage measurements

from ±0.05 %

DC voltage measurement range

-10 to +10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
