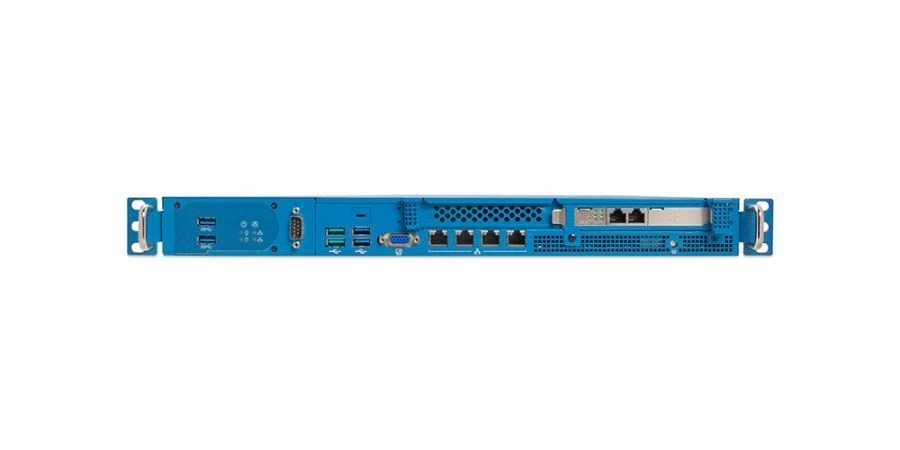

ViPNet Coordinator HW 5 PAC, version ViPNet Coordinator HW1000 (hardware platform HW1000 Q7)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
ViPNet Coordinator HW 5 is a security gateway that embodies the concept of NGFW (Next-Generation Firewall). The following security features are jointly implemented in one device:
- a cryptographic gateway that provides VPN construction at the network (L3) and link (L2) layers of the OSI model;
- SPI (Stateful Packet Inspection) firewall;
- DPI (Deep Packet Inspection) application layer firewall;
- Intrusion Detection and Prevention System (IDS/IPS);
- proxy server;
- high availability cluster (HA-cluster).
ViPNet Coordinator HW 5 is implemented as a hardware-software complex on a trusted hardware platform, as well as a virtual device that can operate in a virtual environment (KVM, VMware ESXi, Microsoft Hyper-V, Oracle VM Server). The implemented network functions and security services are activated according to the purchased licence (individual modules are licensed).
- a cryptographic gateway that provides VPN construction at the network (L3) and link (L2) layers of the OSI model;
- SPI (Stateful Packet Inspection) firewall;
- DPI (Deep Packet Inspection) application layer firewall;
- Intrusion Detection and Prevention System (IDS/IPS);
- proxy server;
- high availability cluster (HA-cluster).
ViPNet Coordinator HW 5 is implemented as a hardware-software complex on a trusted hardware platform, as well as a virtual device that can operate in a virtual environment (KVM, VMware ESXi, Microsoft Hyper-V, Oracle VM Server). The implemented network functions and security services are activated according to the purchased licence (individual modules are licensed).
Specifications
L2 VPN
915
Recommended number of connections to ViPNet nodes
5000 pc
Recommended number of registered ViPNet clients
500 pc
Form factor
1U
Network interfaces
1G RJ-45 - 6 pcs.
Wireless interfaces
Absent
I/O interfaces
USB - 6 pcs.; Console (RS-232) - 1 pc.; VGA - 1 pc.
Internal storage
SSD - 4 Gb; HDD - 1 Tb
Dimensions
430x44x453
Weight
7 kg
Power supply
250 W - 1 pc.
Power consumption (max.)
215 W
Operating conditions
5...35 °C
MTBF (Mean Time Between Failures)
50000
DOE UDP 64 bytes
545000
DOE UDP 1518 bytes
1900
DOE TCP
1800
Application Control (DOE+DPI)
350
Connections per second TCP
115300 pc
Number of connections to be serviced
1000000 pc
L3 VPN
915
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
