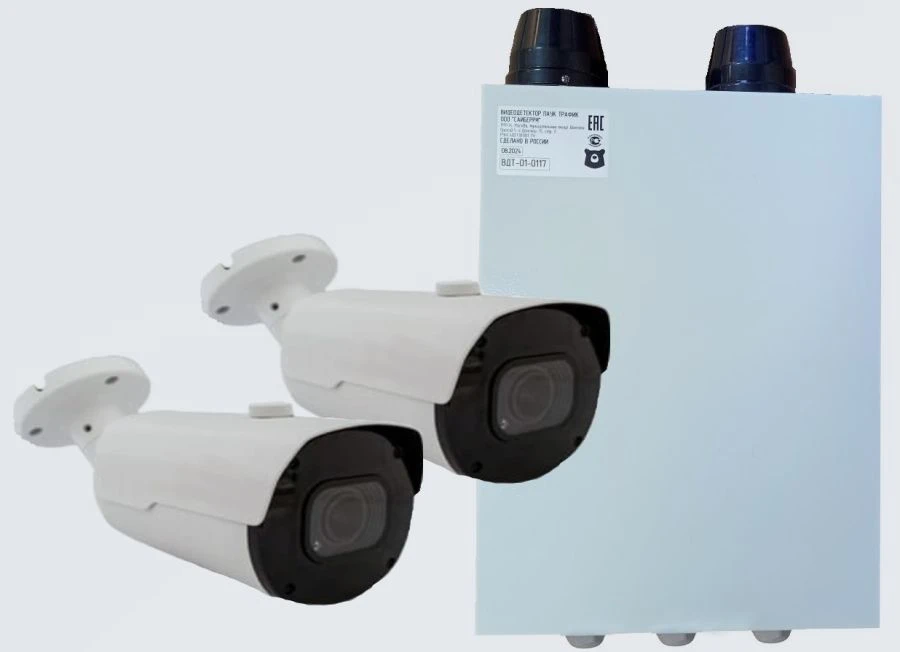

Video detector "PAUK TRAFFIC"

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The video detectors "PAUK Traffic" are hardware-software complexes (PAC) of traffic flow detection, which are designed to take into account traffic intensity within the framework of the system of monitoring of traffic flow parameters of intelligent transport systems and organisation of adaptive operation mode of traffic light objects in accordance with the Methodology of the Ministry of Transport of the Russian Federation (AK-74). The principle of operation is video image analysis. PACs are designed to be placed on road infrastructure elements (street lighting poles, newly installed poles and other structures) on sections of the street and road network (linear sections, intersections), which are equipped with an adaptive traffic control system.

Specifications

Mode of operation Round the clock

Power supply voltage 90...264 V

Power consumption Not more than 100 W

Operating temperature range -50...50 °C

Degree of protection IP65

CMOS sensor with progressive scanning technology At least 1/2.8-inch 2MP

Type of photosensitive matrix Colored

Resolution Not less than 1920 x 1080

Frame rate Not less than 25 fps

Number of video streams 1 stream: 256Kbps ~ 8Mbps; 2 stream: 128Kbps ~ 4Mbps; 3 stream: 8Kbps ~ 1.5Mbps

DC power supply DC 12V / PoE

Power consumption No more than 15 W

Degree of protection IP67

Operating temperature range -50...55 °C

Detecting the fact of passing the vehicle Not less than 95%

Determination of driving direction At least 98%

Determination of average speed Not more than 5km/h

Classification of TC Not less than 90 per cent

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
