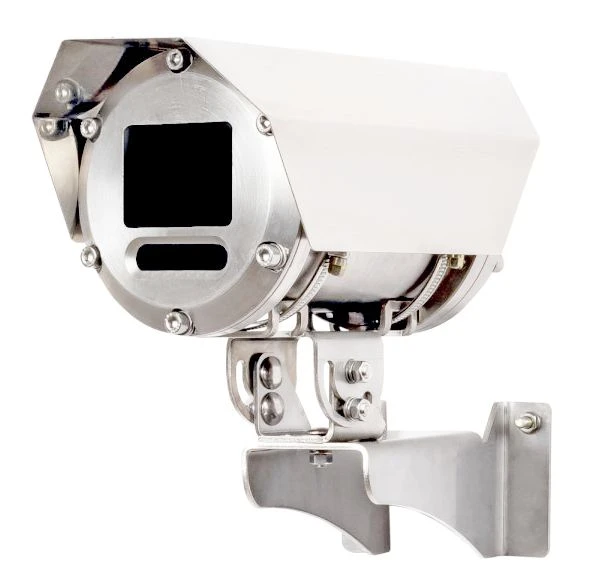

Video camera Zonex-VK-M10-12VDC IP/AHD series

Television Video Cameras

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Video camera Zonex-VK-M10-24-36 VDC/VAC IP/AHD series Video camera explosion-proof Zonex-VK-Exd-M10-12VDC series IP/AHD Video camera Zonex-VK-M10-PoE IP/AHD series Video camera explosion-proof Zonex-VK-Exd-M10-24-36 VDC/VAC IP/AHD series Video camera explosion-proof Zonex-VK-Exd-M10-PoE series IP/AHD

The video camera in a special version is designed for round-the-clock security and technological video surveillance in general industrial areas and unfavourable conditions of aggressive environment. The camera hardware consists of a video module with a resolution from 2 to 4 megapixels, equipped with a fixed lens. The camera is optionally equipped with a sun visor and cable glands. The camera is recommended for use at chemical and petrochemical facilities, in chemically aggressive alkaline and acidic environments, on oil and gas production platforms in seawater and salt fog.

Technical Specifications

Power supply voltage	12 VDC
Temperature range	-70°C ÷ +55°C (with heating) / -45°C ÷ +55°C (without heating)
Housing material	Galvanized steel
Weight	6 kg
Overall size	L:317 (with canopy) / 273 (without canopy) x W:140 x H:260mm
Number of effective pixels	1920 (D) x 1080(H) 2 MP to 3840 (D) x 2160 (H) 8 MP
Lens	2.7-13.5 mm motorized with autofocus
Video compression	H.265,H.264, H.265+,H.264+
Main stream	From 1080P (1920x1080) at 30fps 60Hz to 8MP (3840x2160) at 30fps 60Hz

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
