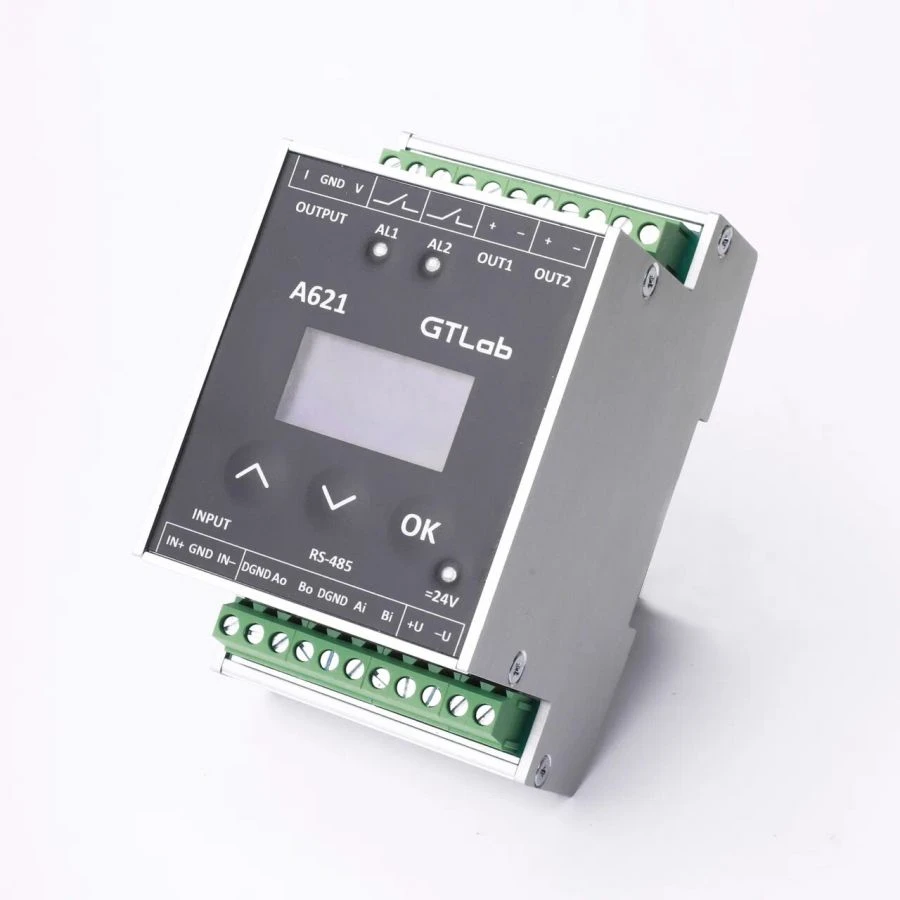

Vibration controller A621

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vibration controllers are designed to measure vibration processes and transfer the obtained values to automatic control systems of technological equipment.

Specifications

Measuring range 1,41 ...141 m/s2 (vibration acceleration amplitudes)

Consumption current 4 ... 20 mA

Parameters of built-in comparators 2 ...100 м/с2 (величины задаваемых порогов срабатывания СКЗ виброускорения) | 3 ...141 м/с2 (еличины задаваемых порогов срабатывания амплитуды виброускорения) | 1 м/с2 (шаг задания порогов срабатывания виброускорения) | 2 ...40 мм/с (личины задаваемых пор

Input/output connectors screw terminals

Measurement error in the operating temperature range ±2 %

Types of connected vibration transducers battery chargers

Data exchange in the information system RS485

Dry contacts: for control of vibration velocity and vibration acceleration AL1, AL2

Conditions of signaling (closed or open) of relay contacts "AL1", "AL2" continuous exceeding of the set threshold by the informative signal within 0-9 s

Power supply voltage 0...5 V

Operating temperature range -40...70 °C

Mode of operation of relay contacts lockout/self-recovery

Self-recovery condition 6% reduction of vibration from the trigger threshold

Delay of vibration control after establishing operation mode/self-recovery 0 or 20

Dry contact parameters <0.15 A (constant switching current)

Open collector contact parameters <20 mA (direct current Ic)

Digital code output parameters 12 (number of digits of measurement result code)

Information displayed on the built-in display Vibration velocity and vibration acceleration ACS, vibration velocity and vibration acceleration amplitude, sensor conversion coefficient, values of set thresholds, setting of time of exceeding thresholds, relay contacts status (dry contacts and open colle

Consumption current < 200 mA

DIN rail mounting Armoured glass

Supply voltage (±10 %) 18...30 V

Weight 200 g

Operating frequency range of measured vibration velocity and vibration acceleration (frequency response non-uniformity ± 1 dB) 30...400

Step of setting the time of exceeding the vibration velocity threshold values 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
