Vertical Tiller Cultivator Celli Ranger 300

Available for Import

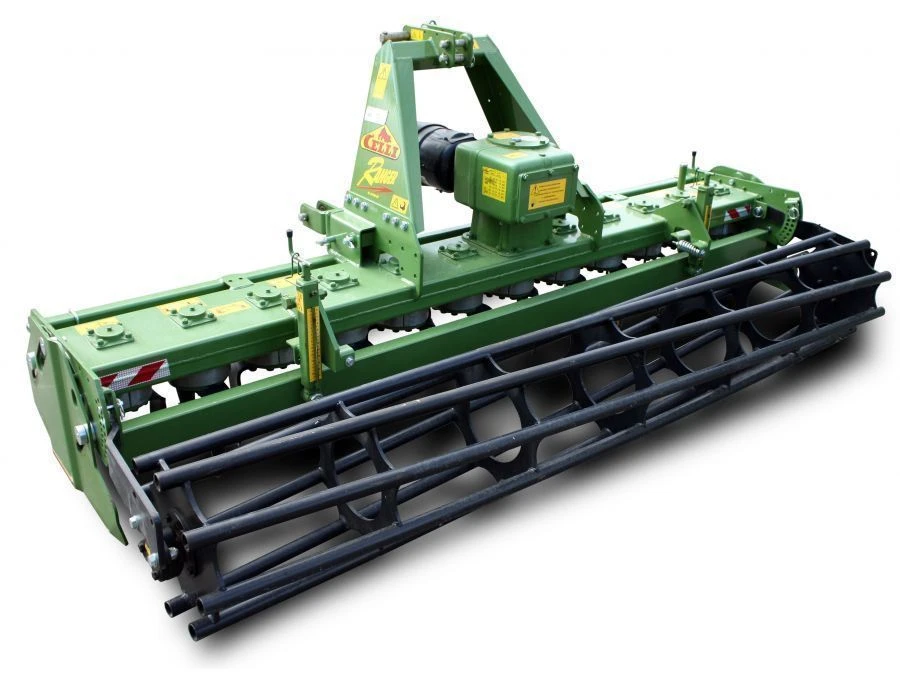

Celli Ranger 300 Vertical Tiller Cultivator

Cultivator Machines

Manufacturer: KOLNAG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cultivator is designed for pre-sowing preparation of fields (qualitative cutting of the layer and pre-sowing rolling) after the main tillage of the soil made by ploughs, as well as planes and chisels. It is allowed to cultivate an unploughed field after the pass of the harrow to the depth of cultivation with the harrow. The amount of plant residues should not exceed 5t/ha after the pass of the harrow on coarse-stem background.

Its use for ploughing virgin soils and on soils littered with stones and littered with coarse-stemmed plants without basic cultivation is not recommended and the manufacturer is not liable for damage caused by its use for purposes other than those intended. Use of the cultivator on soils subject to wind erosion is not recommended. Soil hardness should not exceed 1 MPa.

The optimum depth of cultivation is 12-14 cm (working depth up to 27 cm and maximum 30 cm).

Specifications

Type of product according to PP RF 616

Cultivators

Number of working orans

1 pcs

Material of frame structures

Metal

Material of working elements

Metal

Type

Trailed

Working width

3 m

Width

3050 mm

Height

1200 mm

Length

1400 mm

Mass fraction of lumps, by fractions up to 50 mm

Flat grinder, Specialised grinder %

Surface finish after pass, (excluding joint ridges) max.

3 cm

Working speed at basic operations, at working depth up to 8 cm (surface cultivation)

Ripper diameter by blade

275 mm

Output per 1 h of basic time, at working depth up to 8 cm (surface treatment)

Working depth,not more

28 cm

Tractor PTO drive

540

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
