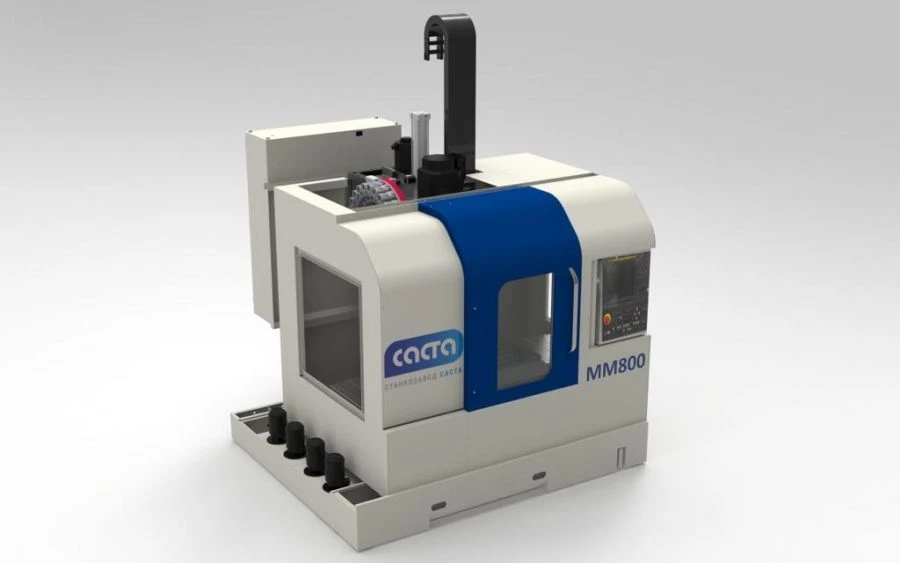

VERTICAL MILLING MACHINE MM800

Metal Milling Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vertical machining centres mod. MM800 are designed for high-speed machining of parts with high precision.
-The bed is cast from cast iron grade CH25, with high rigidity and vibration resistance.
-High-class linear guides allow the spindle headstock and table to move at a speed of up to 30 m/min.
-The machine is equipped with a belt-driven spindle with a speed of up to 10,000 rpm, ISO40 taper. The motor power can be increased compared to the basic one.
-The maximum speed can also be increased up to 12,000 rpm if required. A different spindle design is used - direct connection to the motor, no adapter elements.
-The high torque servo motors are directly connected to the ball screw gears in all axes.
-Ball screws are double preloaded and supported on both sides by angular contact precision bearings.

Specifications

Type of product according to PP RF 616 Vertical milling machines

Length 3950 mm

Width 2300 mm

Height 2950 mm

Weight 6250 kg

Type of drive system Belt transmission

Spindle rotation ranges 10000

Spindle cone ISO 40

Transverse travel of the table 800 mm

Longitudinal travel of the table 500 mm

Vertical spindle stroke 500 mm

Table length 900 mm

Table width 520 mm

Distance from spindle axis to Z-axis housing 595 mm

Distance from spindle cone to table 100 to 600mm

Maximum permissible table load 450 kg

Number of T-slots 5 pc

Parameters of T-slots (width/step/number) 16x80/100x5

Table height 870 mm

Main engine power Heidenhain 10/14kW; Siemens 7/10.5 (10.5/15.8) kW; Fanuc 7.5/11kW.

Torque Heidenhain 63.7/89.1 Nm; Siemens 44.5/66.8 Nm; Fanuc 47.8/66.8 Nm

Accelerated motion - X/Y/Z axes 30/30/30 m/min

Parameters of ball screw (diameter x pitch) Ø40xP16 mm

Guide type Rollers

Guide width Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording mm

Distance between X-axis guides 360 mm

Distance between Y-axis guides 700 mm

Distance between Z-axis guide rails 400 mm

Positioning accuracy 0,01-300 mm

Repeatability 0.01 mm

Type of tool change "Hand"

Number of items 24 (30 - optional) pieces

Tool shank BT or DIN 40

Maximum tool weight 7 kg

Maximum diameter of the tool with a full magazine 75 mm

Maximum tool diameter with empty neighbouring sockets 125 mm

Maximum tool length 300 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
