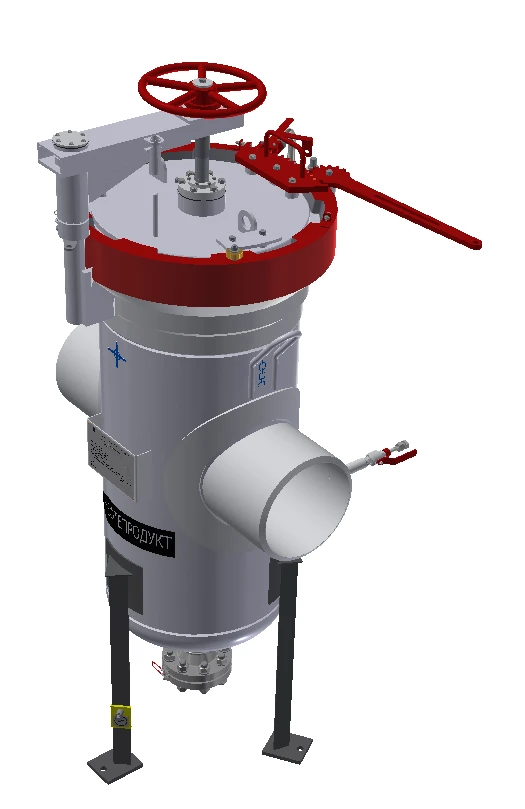

Vertical Filter-Trap Model FShD for Effective Mechanical Filtration

Filters-dirt-catchers vertical model FSHD (Filter slotted drainage, hereinafter - filter) are designed to clean the pumped medium from mechanical impurities, foreign objects, clay, paraffin-resin deposits and scale, formed during repair and operation of linear part of trunk oil pipelines and oil product pipelines and technological equipment, pipelines and tanks of oil pumping stations of trunk oil pipelines and pumping stations of trunk oil product pipelines. The filters are produced with nominal diameter of the pipeline DN 80 - 1000 and working pressure PN 1,6 - 6,3 MPa. The filters are cylindrical vertical vessels, with a quick-connect end closure on one side. The filters are installed before the equipment of oil pumping stations or pumping stations of oil products.
