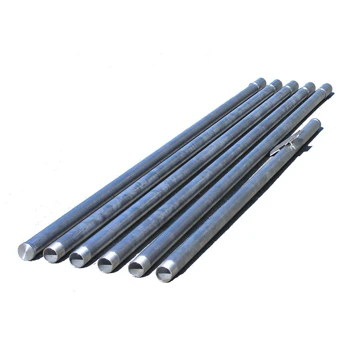

Vertical electrolytic earthing electrode EZV-60-15000-340N

High Voltage Switchgear

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for installation in high resistive soils (permafrost, rocky ground) in accordance with the installation instructions and design solutions. For permafrost it is recommended to install deep earth electrodes with a length of at least 15-20 metres. Length - 15000 mm Diameter - 60 mm. The installation of the earthing switch requires preliminary drilling of a borehole with a diameter of 340 mm and a depth of 15500 mm.
2. Plastic control well 470x450 mm (1 pc.)
3. Mineral salt No. 2 - 150 kg (3 pcs.). 3.
4. Coke-mineral aggregate four-component (electrolytic activator) -1150 kg.
5. Bentonite clay powder - 50 kg (1 piece).
6. Earthing switch horizontal ZG-40x4.4000N with fasteners. Cross-section 160 sq.mm, length 4 metres. Stainless steel. - 2 pcs.
7. Sealant tape 50 mm x 3 mm, 10 m (1 pc.)
8. Electrospinning graphite grease - 0,4 kg. (1 pc.)
9. Connecting clamp ZS-2N (90x90 mm) of stainless steel (1 pc.).

Technical Specifications

Length	180 mm
Width	84 mm
Height	15790 mm
Size	470-450 mm
Weight	1417.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
