Available for Import

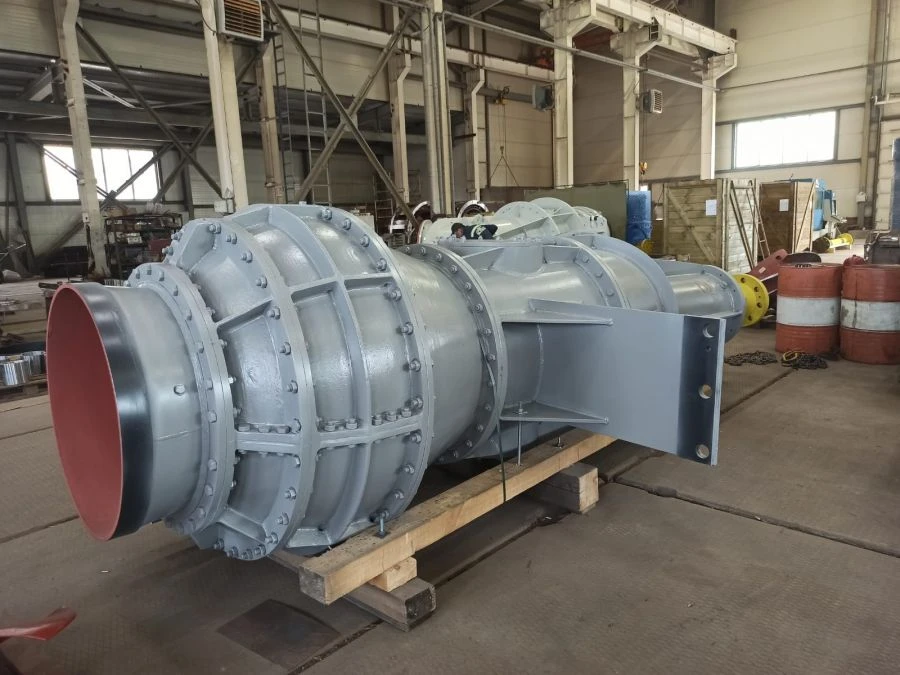

Vertical axial pump unit type TDV
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The purpose of modernisation is to replace obsolete units with modern high-tech components, which allows to increase the service life of the pump unit, reduce maintenance and repair costs. Both synchronous and asynchronous electric motors can be used as a drive, which do not absorb the axial hydraulic load from the weight of the pump rotor. The torque from the electric motor is transmitted by means of an elastic coupling. In the upper part of the pump there is a thrust-radial bearing unit, in which a roller thrust-radial rolling bearing is mounted, which supports both axial and radial loads. The bearing is lubricated with liquid lubricant (oil bath).
Technical Specifications
| Climatic version | U, UHL,T placement category 2,3,4 according to GOST 15150 |
|---|---|
| Operating medium | Water and liquids with viscosity and chemical activity similar to water |
| Outlet pressure | 0.15...0.26 MPa |
| Weight | 3200...46000 kg |
| Medium temperature | 0...35 °C |
| Feeding | 14400...68400 |
| Material | Stainless materials, duplex steels, high-strength and gray cast iron are acceptable |
| Pressure | 15...26 m |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
