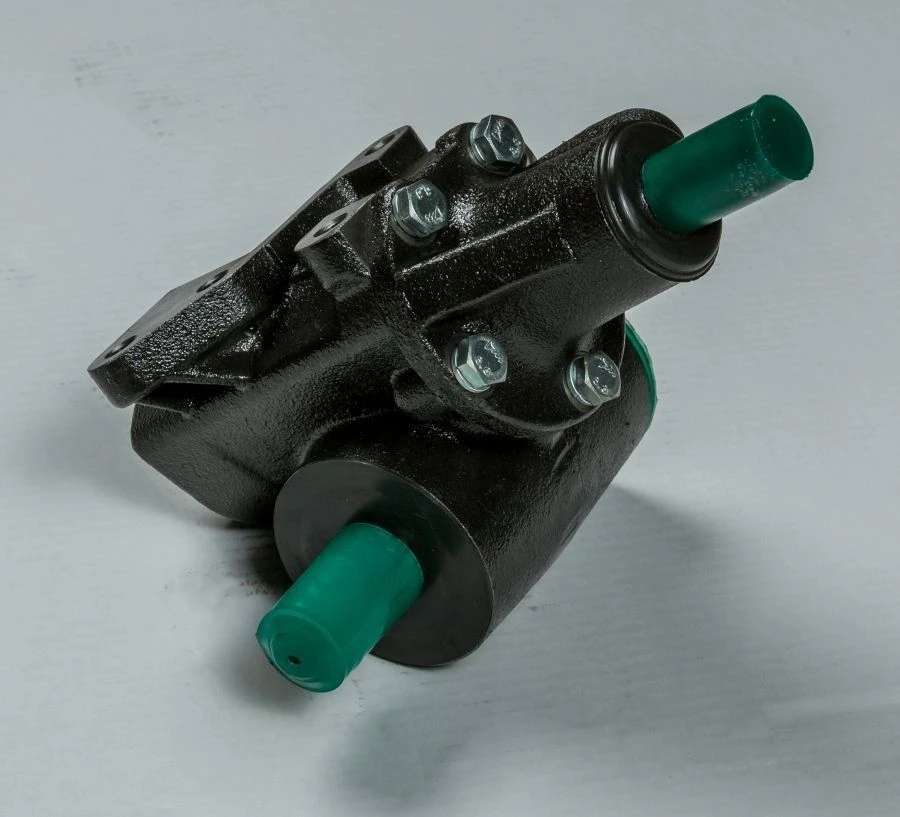

Vehicle steering mechanism (VSM) according to TU 4531-129-05808600-97

Steering System Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

- type of MPU - screw, ball nut, rack, sector;
- steering bipod shaft diameter - from 27 to 50 mm;
- centre distance in the crankcase - from 50 to 98 mm;
- screw diameter - from 20 to 80 mm (20, 25, 32, 40, 45, 50, 63, 70, 80);
- screw and nut thread pitch - from 4 to 20 mm (4, 5, 6, 8, 10, 12, 15, 16, 20);
- thread profile - arched (gothic arch);
- nut type - single nut with toothed rail;
- method of creating preload
- by selective selection of ball diameters for the thread profile "gothic arch";
- ball diameter - Ø7, 144; Ø7, 938;
- ball return mechanism - external return tube or pad;
- type of power steering - hydraulic, electric;
- location of the steering booster - built into the steering mechanism, separate from the steering mechanism;
- ambient temperature during operation from - 45°C to + 50°C (depending on the type of oil).

Specifications

Operating temperature range 0...50 °C

Outer diameter 120...350 mm

Height 100...400 mm

Dividing circle 45...110 mm

Number of splines 32...60 pc

Name car steering mechanisms

Designation 31301; 80501; 6909; 3303; gur 05

Model steering mechanisms of the type: "screw; ball nut; rack; sector".

Performance 500...3000

Applicability Parts and accessories of motor vehicles

Thread pitch of screw and nut 4...20 mm

Screw diameter 20...80 mm

Location of power steering Built in steering gear; separate from steering gear

Type of power steering Hydraulic; electric

Ball return mechanism External return tube or padding

Nut type single nut with toothed rail

Thread profile arched (gothic arch)

Diameter of steering bipod shaft 27...50 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
