Available for Import

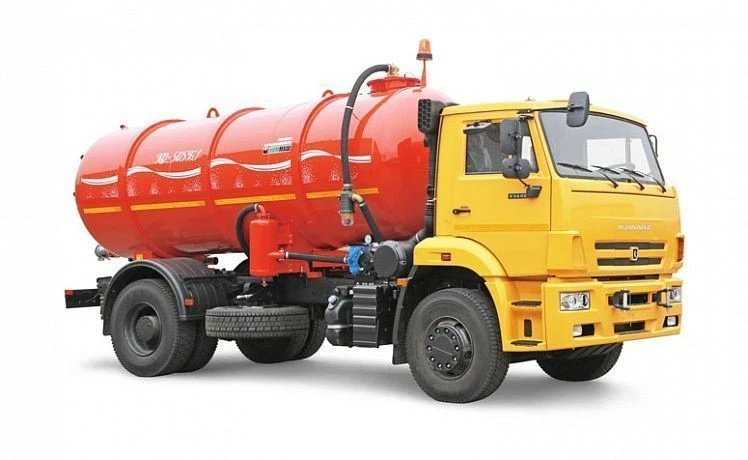

Vacuum truck KO-505B1, type 53605-VKH, modifications KO-505B1, base chassis: KAMAZ-53605-A5, KAMAZ-53605-5N, ecological class
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Vacuum machine KO-505B1 is designed for vacuum cleaning of cesspools and manholes, storm and sewer networks, mechanised filling, transportation and unloading of liquid waste that does not contain flammable, aggressive and explosive substances. The equipment is mounted on a vehicle chassis and consists of a tank, vacuum pump drive, PTO, splash deflectors, vacuum injection system, pneumatic system, additional electrical equipment, inspection window for visual control.
Specifications
Type of product according to PP RF 616
Vehicles for public utilities and road maintenance
Width
2500 mm
Height
3650 mm
Engine type
Four-stroke diesel engine
Base chassis type
kamaz-53605-a5, kamaz-53605-5n
Tank capacity
11
Technically permissible maximum weight of the machine
20500 kg
Vacuum pump capacity
360
Maximum depth of the pit to be cleaned
4 m
Tank filling time
8
Pressure tank emptying time
7
Time of tank emptying by gravity flow
9
Length
8000 mm
Maximum sound level
80
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
