Vacuum switch (recloser) Rec15_Smart

High Voltage AC Switches

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

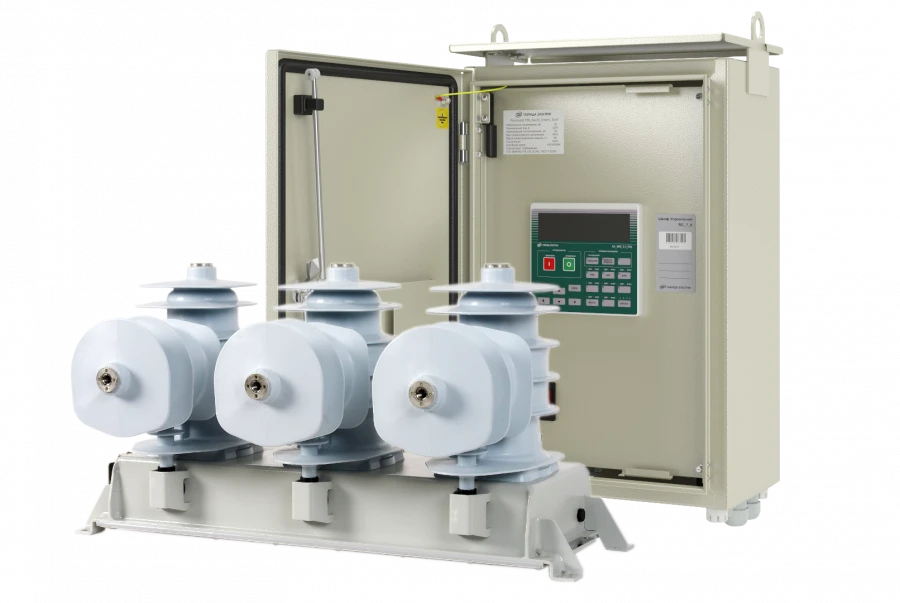

Vacuum switch (recloser) Rec15_Smart for rated voltage 6(10) kV, rated currents up to 630 A, rated tripping currents up to 16 kA, climatic version UHL, placement category 1, consisting of switching module OSM15_Smart three-pole version with phase electromagnetic actuators and control cabinet RC7 with control module CM_15 series as built-in protection device, automation, control and monitoring designed for switching of electric circuits in normal and emergency modes in three-phase alternating current networks with frequency 50 Hz with isolated, compensated and earthed neutral.
Recloser can be used for automation of power lines, retrofit or new construction as a part of open switchgears of outdoor installation at substations of distribution complex, as well as for sectionalisation of power lines intended for power supply to non-tractor power consumers, and......

Specifications

Warranty period of operation 7 years

Control cabinet weight 27 kg

Weight of the switching module 34 kg

Overall and connection dimensions (WxHxH) of the control cabinet 545×740×300 mm

Overall connection dimensions (WxHxH) of the switching module 705x365x435 mm

Enclosure protection degree according to GOST 14254 of the control cabinet IP54

Enclosure protection degree according to GOST 14254 of the switching module IP65

Permissible supply voltage range (DC/AC) 85...265 V

Degree of contamination according to GOST 9920 IV

Climatic execution and placement category according to GOST 15150 UHL1

Mechanical resistance life, cycles "HE" 30000

Electrodynamic resistance current (highest peak) 40000 A

Thermal resistance current flow time 3

Thermal resistance current (RMS value of current during its flow time) 16000 A

Rated tripping current 16000 A

Rated current 630 A

Insulation level according to GOST 1516.3 6

Highest operating voltage B1/B8 2100/900 MHz kV

Nominal voltage 10 kV

Type of arc suppression medium Vacuum

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
