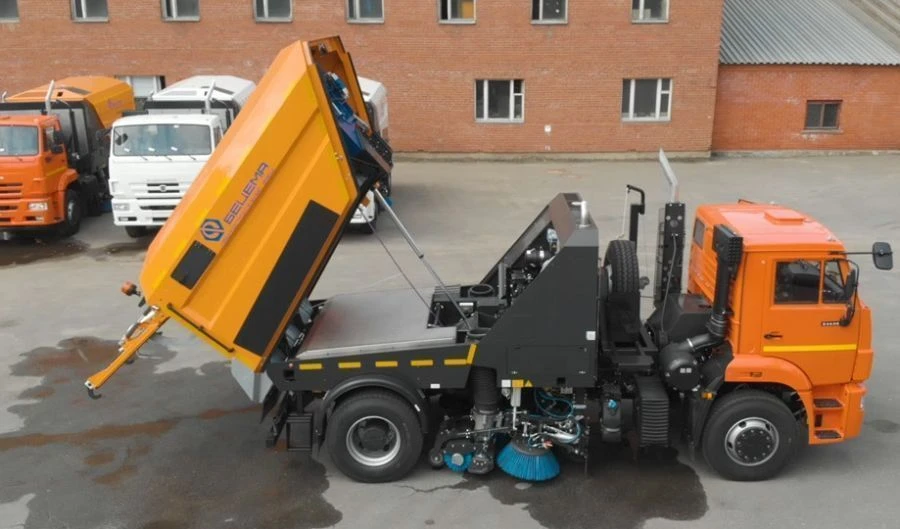

Vacuum sweeping machine BCM-279 on KAMAZ 53605-A5, 53605-5H chassis (without mouldboard).

The BCM-279 vacuum sweeping machine on KAMAZ 53605-A5, 53605-5N chassis (without mouldboard) is designed for use in urban road maintenance, cleaning of pedestrian areas, park territories, urban roads in tight urban conditions, as well as in industrial and social areas: railway stations, technological roads on the territory of factories. Completion with attachments is agreed with the customer.
Technical characteristics
Base vehicle KAMAZ 53605-A5, 53605-5H
Gross vehicle weight, kg, not more than 20 500
System container volume, cu. m7.0
Volume of waste collection container, cu. m5.8
Total water volume, l1,600
Rear water tank, l1 250
Front water tank, l350
Air flow rate, m3/h18,000
Total width of the cleaning zone, mm2 300 (3 500)
Overall dimensions in working condition, mm, not more:
- length7 100
- width2 500
- height3 300
