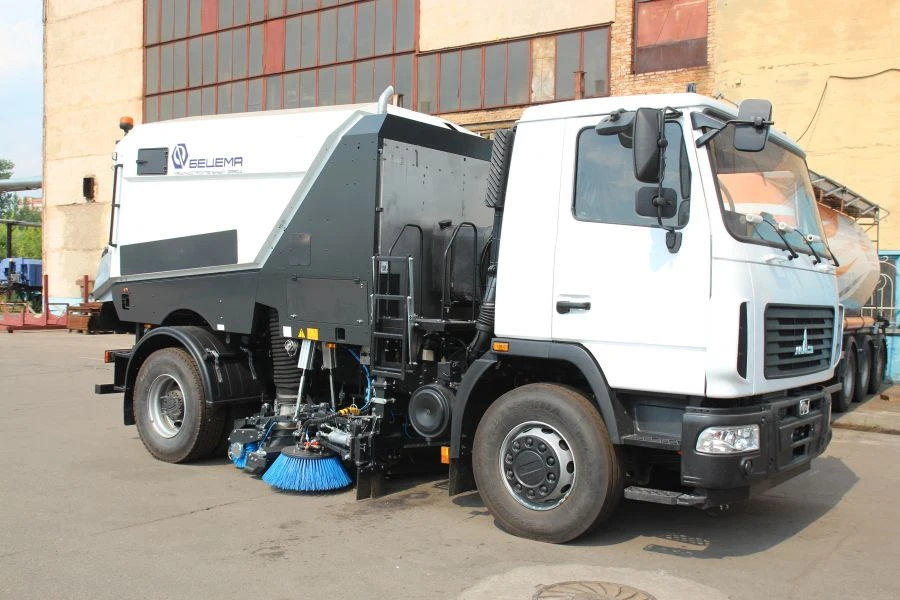

Vacuum sweeping machine BCM-279.1 on chassis MAZ 534025

Machine sweeper-vacuum BCM-279.1 on chassis MAZ 534025 is designed for use in urban road maintenance, cleaning of pedestrian zones, park areas, urban roads in tight urban conditions, as well as in industrial and social areas: railway stations, technological roads on the territory of factories. Configuration with attachments is agreed with the customer.

Technical specifications:
Base vehicleMAZ 534025
Gross vehicle weight, kg, not more than 20,500
System container volume, cubic metre7.0
Container volume for rubbish collection, cu. m5.8
Total water volume, l1 600
Rear water tank, l1 250
Front water tank, l350
Air flow rate, m3/h18 000
Rotational speed, rpm2 100-3 100
Total width of the cleaning zone, mm2 300 (3 500)
Maximum transport speed, km/hour, not more than 80
Overall dimensions in working condition, mm, not more:
- length6 820
- width2 500
- height3 350
