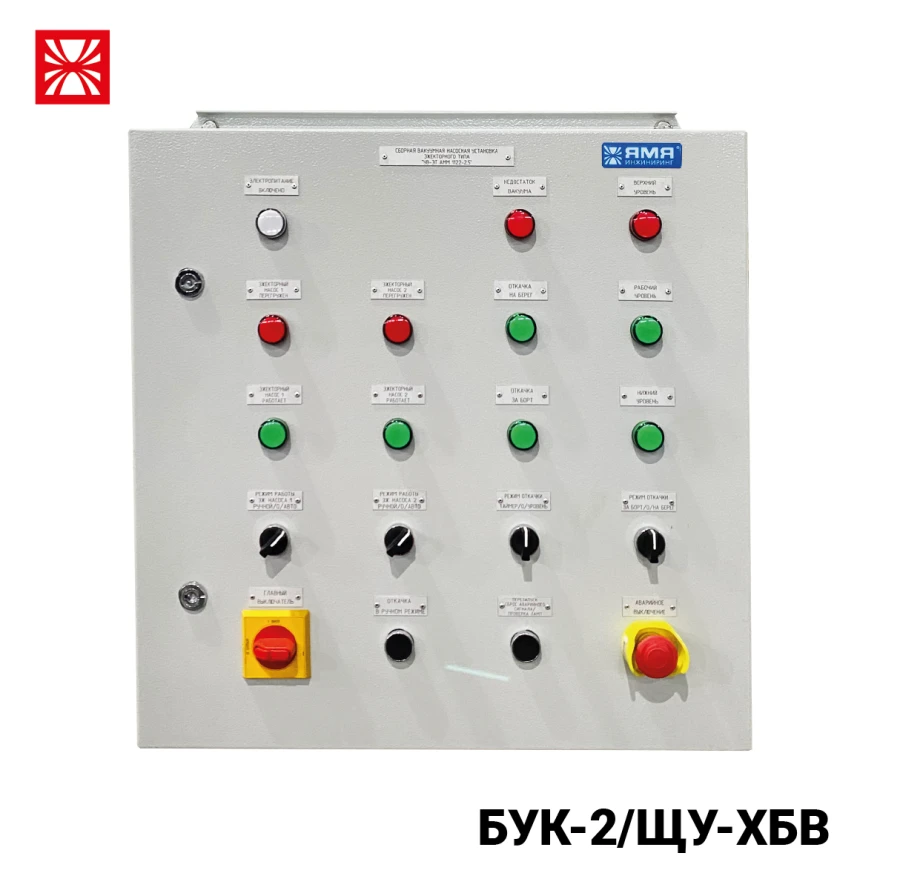

Vacuum control panel for domestic water vacuum system "BUK-2"/, "ShchU-KHBV".

The control panel "BUK-2"/"ShchU-KHBV" as part of the sewage system of household water is designed to control the process of collecting runoff into the sewage tank, treatment of household water, as well as discharge of accumulated water, on board of ships and vessels, as well as commercial, cruise ships and yachts. "BUK" control panels are used to automate the operation of vacuum systems for the collection and transport of sewage, domestic water and food waste. BUK control panels can work both in manual and automatic mode. BUK FUNCTIONS: "turnkey" control (start-up of the unit; collection of wastewater in the cistern; issuance to the outlet pipe; pumping out); Signalling and automatic shutdown of the unit when the upper level sensor in the cistern is triggered in the "Collect" mode and when the lower level sensor is triggered in the "Issuance/Discharge" mode; Automatic change of the sequence of switching on the vacuum units No. 1 or No. 2 of the complex in the vacuum generation mode to equalise the life of the units.
