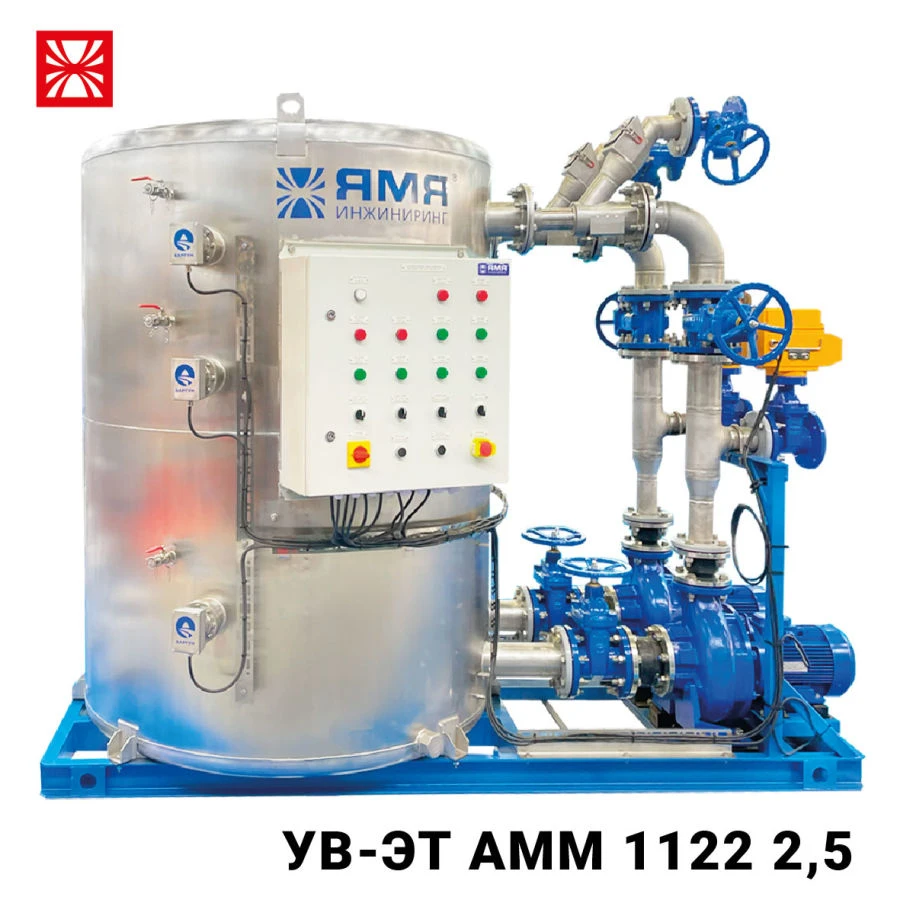

Vacuum assembly unit of ejector type "UV-ET" AMM 1122-2,5

Ship sewage system, with two ejectors Du100 mm, with electrified drain gate valves in the harness of each ejector, with control panel, two pumps and a cistern of 2.5 cubic metres. Vacuum wastewater collection unit of ejector type UV-ET AMM 1122-2,5 generates and maintains the required vacuum level in the pipelines of the wastewater and domestic water system by means of ejectors. Wastewater and domestic water are collected in a collection tank of the unit. Pumps are used to pump the sewage and domestic water from the collection tank into the sewage storage tank of the ship. Robust and reliable construction; Easy maintenance; Fully automatic operation; Fast vacuum generation; Long service life; It has a prefabricated cistern, which allows to reduce or eliminate the ship's cistern; The discharge head of up to 14 metres allows to discharge sewage, bypassing the installation itself.
