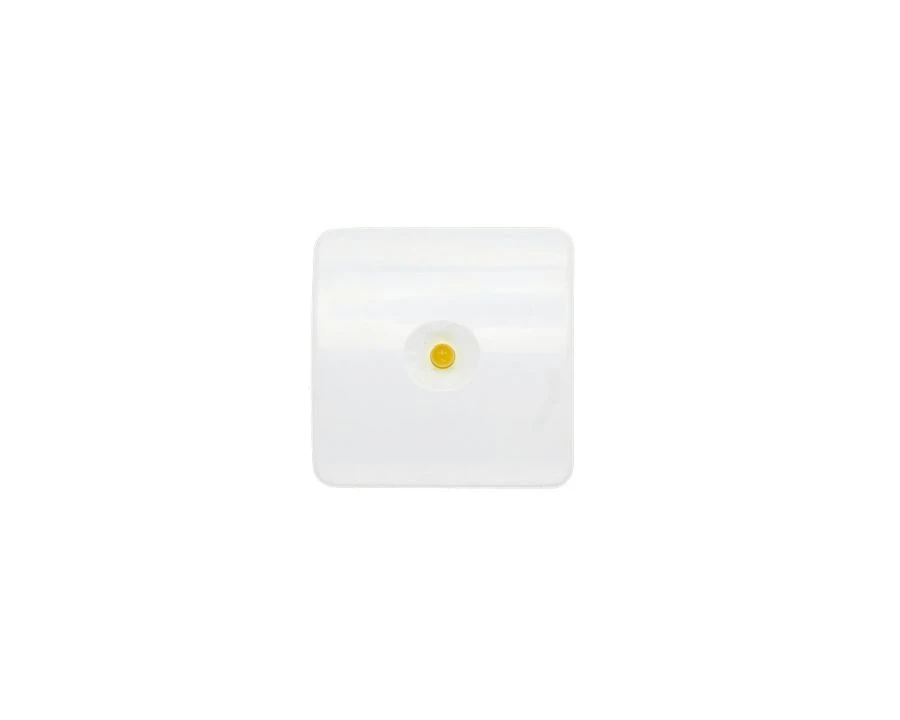

UShK-04 Control Device for Security and Fire Alarm Systems

Available for Import

UShK-04 Control Device for Monitoring Power Supply in Alarm Systems

Security Alarm Parts

Manufacturer: IVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The device USHK-04 is intended for use in four-wire loops of security and fire alarm system as a terminal relay of voltage presence in the supply line. The main element of the UShK-04 circuit is an optorelay. The input circuit of the optorelay is supplied through a noise suppressing filter. An optical indicator of yellow (green) colour is connected in series with the input circuit of the optorele. In the output circuit, in series with normally open contacts, a resistor (24 Ohm) is included to protect the optorele from erroneous connection of the output to the power supply circuit.

Specifications

Power supply voltage

9...15 V

Current consumed by devices at maximum supply voltage, not more than

0.012 A

Resistance value between contacts "3" and "6" in the presence of supply voltage, not more than

100 ohm

Resistance value between contacts "3" and "6" at absence of supply voltage, not less than

500000 ohm

Weight of the device not more than

0.1 kg
