User-Defined Signal Transmission Module for CompactPCI - KM42C for Enhanced Connectivity

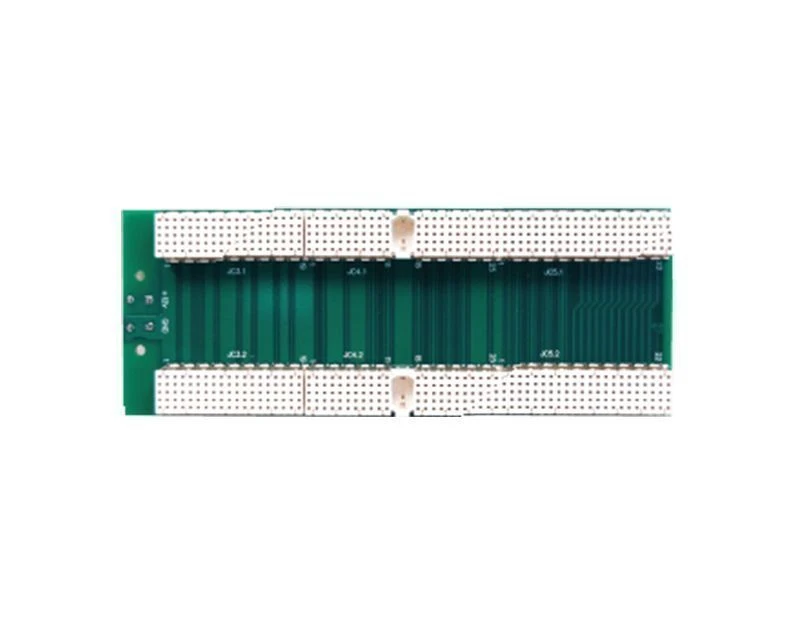

The KM42C module is designed to transmit user-defined signals (abbreviation - u.d.) on the CompactPCI bus from the slot where the K42C processor module is installed to the neighbouring cross-board slots where the KTM42C interface adapter module is installed. The KM42C module is installed on the back side of the CompactPCI cross-board in connectors J3 - J5. The module is used in devices together with K42C and KTM42C modules.

The module is intended for use as part of on-board equipment of automatic and automated control systems operating in difficult operating conditions. The module is intended to be used as a part of the CompactPCI system bus crate together with the K42C processor module and the KTM42C interface module. The module provides the following basic technical characteristics: <ul> <li>- Number of backplane slots: 2 or 3;</li> <li>Switching of high-speed serial signals</li> </ul>for interfaces: PCIE, SATA, 1Gb Ethernet, USB2.0; <ul> <li>- Switching of signals of graphic interfaces: DVI, VGA.</li> </ul>.
