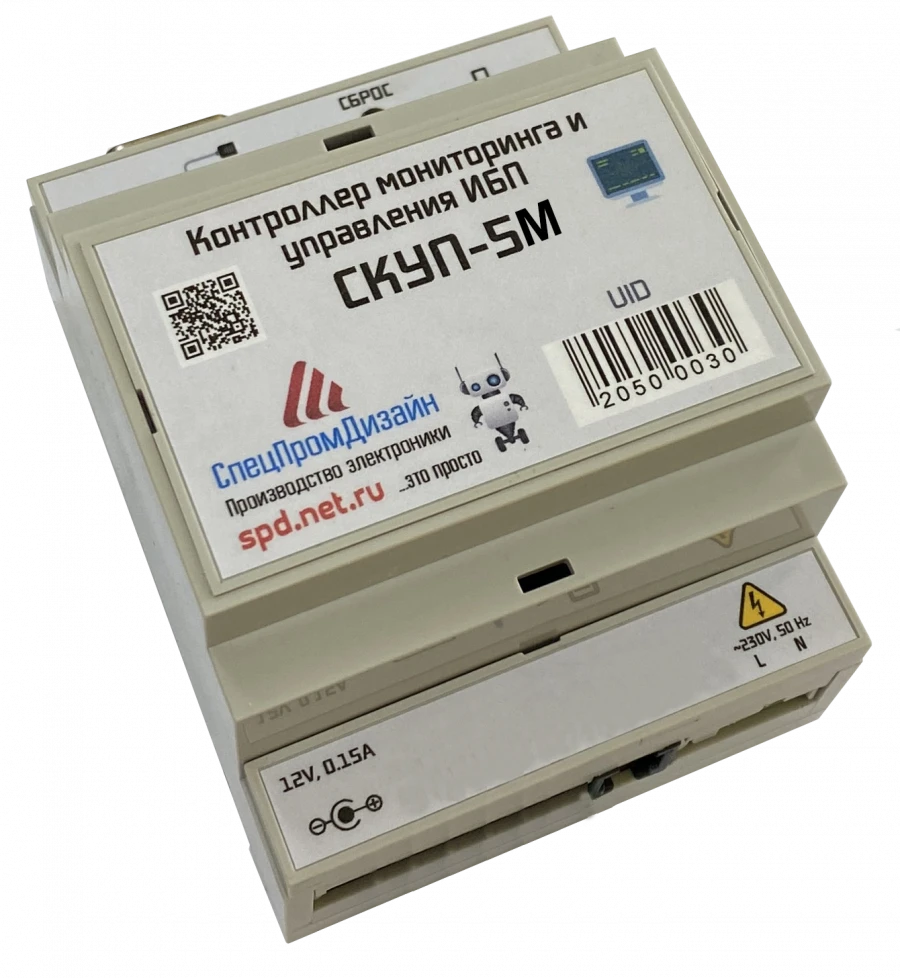

UPS monitoring and management controller "SKUP-5M"

The monitoring and control controller is designed to display and log the UPS status and all events related to its change.
The device supports Megatec, Voltronic communication protocols and allows connection to the UPS via RS-232 port. In addition, the controller has a built-in temperature sensor, one input for connecting an external temperature sensor, one input for connecting a sensor with "dry contact" or "open collector" output, one output line for controlling an external relay and a node for detecting the presence of line voltage AC 230V, 50 Hz ("phase sensor").When the readings of any sensor beyond the set limits, as well as when changing the state of the input, the controller can send alarm messages through the built-in Ethernet-port via SNMP protocol to a remote server.
The device supports ICMP protocol (Echo-Request) to monitor the availability of network equipment.
