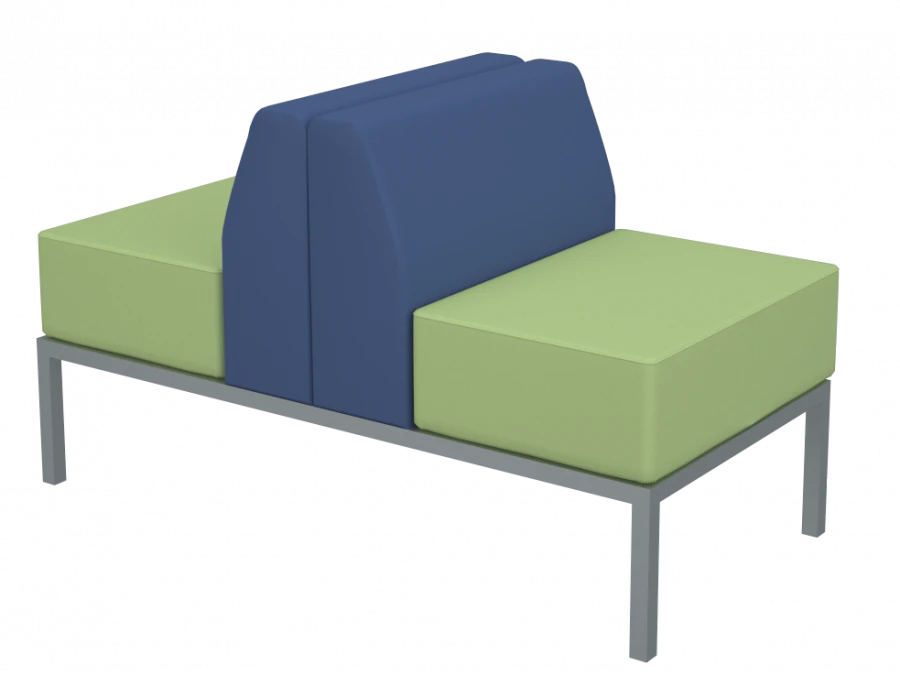

Upholstered module (Furniture section 14)

size 1300x650x710mm. The frame consists of multilayer, moisture-resistant birch plywood 8mm thick, LDSP 22mm, fibreboard 3,2mm. Assembly is made with a frame bracket. The seat is 40mm PPU, density 30kg/m3. Backrest PPU 30mm, density 22kg/m3. Sides and backrest are glued with PPU 10mm, density 18kg/m3. Parts of the module are screwed together with hexagonal bolts M8x90mm. Upholstery material is fabric/artificial leather. The bottom of the module is stuffed with spunbond 60 g/m2. The product is mounted on a metal frame made of cold-rolled profile pipe, cross-section 25x25x1.5mm. Painting is made by applying polymer powder to the grounded product in an electrostatic field with subsequent curing at T - 180-200°C
