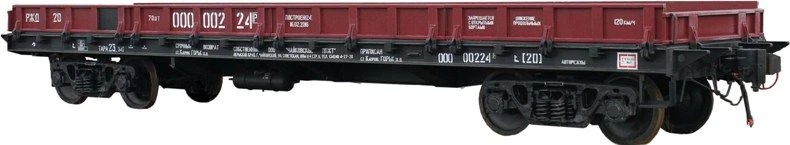

Universal platform model 13-9744-03 for transporting large-tonnage containers, timber, wheeled and tracked vehicles.

Rail Flatbed Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Biaxial bogie of freight wagons model 18-9896 (9896-10.00.00.00.000 and 9896-10.00.00.00.000-01)

The platform is designed for carriage of:
- one container of type 1AAA, 1AAA, 1A, 1A, 1AX and two containers of type 1SS, 1S, 1SX according to GOST R 53350;
- timber with length from 3 to 13.2 m;
- wheeled and tracked vehicles;
- tare and piece goods;
- bulk cargoes that do not require protection from atmospheric precipitation.

Technical Specifications

Type of product according to PP RF 616	Railroad type flat cars
Payload	70 t
Base	9720 mm
Length along the coupling axes of couplers	14620 mm
Car length along frame end beams	13400 mm
Width along frame side beams	3100 mm
Track width	1520 mm
Design speed	120
Number of longitudinal boards	8 pc
Wheel set axle load on track	23.5 t
Number of end boards	2 pc
Number of hinged fitting stops	8 pc
Floor availability	1 pc
Assigned service life	32 a
Assigned service life until first overhaul	15 a
Dimension according to GOST 9238	1-wm pc
Tare weight	24 t
Height from the UHGR to the horizontal axis of the coupler	1080 mm
Height of sidewalls from the UHGR	1876 mm
Assigned service life until the first scheduled (depot) repair	3 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
