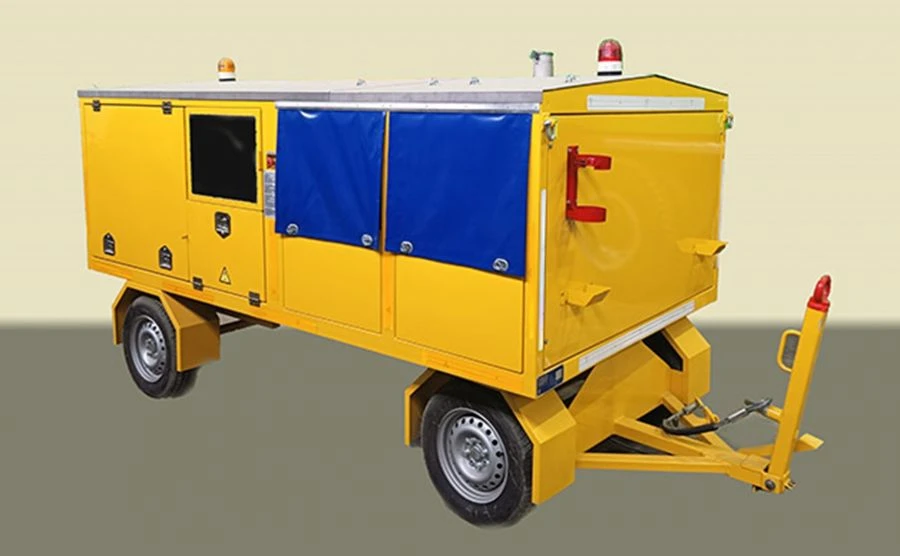

Universal mobile diesel-powered aircraft heater UMP-01

Special Purpose Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Universal mobile aircraft heater with diesel drive, designed to supply the aircraft cabin with heated air and quickly warm up the engines or uniform heating during maintenance. The heater can perform ventilation of the aircraft cabin, heating of the aircraft cabin, strong heating for de-icing of engine blades and external elements of aircraft landing gear.

Specifications

Type of product according to PP RF 616 Special purpose motor vehicles other, not included in other groupings

Engine type Four-stroke 4-cylinder diesel engine

Rated power of heater 200 kW

Air consumption at ambient temperature minus 10?? 6500

Air pressure from heater at ambient temperature minus 10oC 93

Temperature of heated air 28...142 °C

Heating system fuel Diesel; aviation paraffin; mixture

Motor speed 2300...2500

Oil pressure 68

Generator Single-phase with V-belt drive

Generator output voltage set manually 230 V

Output voltage B1/B8 2100/900 MHz V

Power 2.1 kW

Frequency SBVVBG

Alternator speed 2990...3010

Number of ducts 1 pc

Length of air duct 10 m

Voltage at ignition electrodes 10000 V

Clearance 130...140 mm

Minimum turning radius 1.7...1.9 m

Fuel tank capacity 190...200 l

Weight 1453...1461 kg

Preheater modes ventilation; weak mode; strong heating

Main assemblies steel frame; diesel engine; stainless steel fuel tank; generator; fuel burner; air supply system; control unit; air hose.

Mark UMP-01; UMP-01.01; UMP-01.02; UMP-01.03; UMP-01.04; UMP-01.05

Base chassis Two-axle bogie; GAZ-3302 Gazelle; GAZ-3310 Valday; MAN TGL; Mercedes Atego; Volvo FL

Width 1707...1719 mm

Height 1750...1760 mm

Length 4513...4521 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
