Universal instrumental cables KUIN ng(A) xx EVB

Installation Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Universal instrumental cables KUIN ng(A)-LS xx EPS Universal instrumental cables KUIN ng(A)-LS xx EVEK Universal instrumental cables KUIN ng(A)-FRHF xx PsEK Universal instrumental cables KUIN xx EVK Universal instrumental cables KUIN ng(A)-FRLS xx PsK

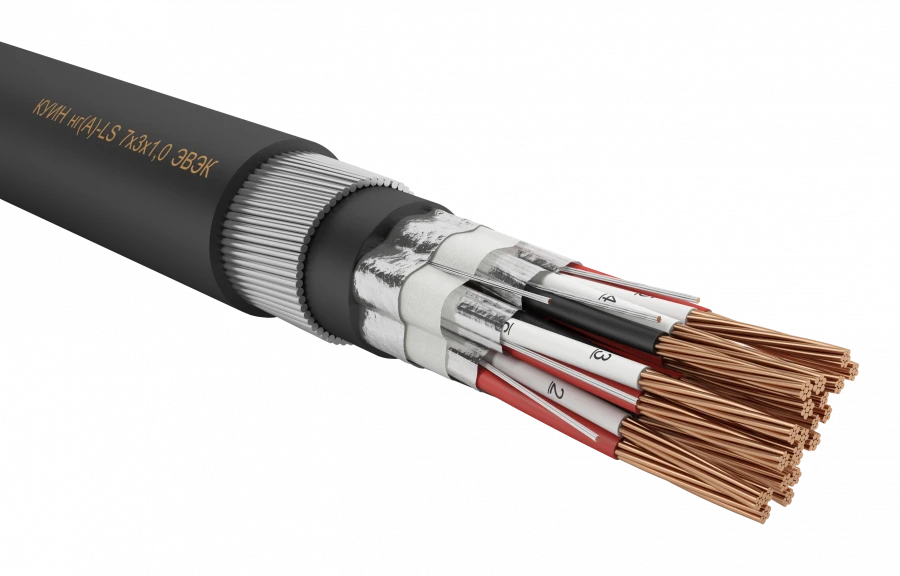

Universal instrumental cables with copper or copper tinned cores, with PVC plasticate insulation and PVC plasticate jacket of reduced flammability, with individual screens, in tape armour. Intended for data transmission in the frequency range up to 4 MHz in measuring, control and regulating equipment, as well as for connection of AC electrical equipment with rated voltage up to 690 V and standard frequency of 50 or 60 Hz or DC electrical equipment with rated voltage up to 1000 V, for laying in rooms, cable constructions, channels, tunnels, ground (trenches), including places exposed to stray currents

Technical Specifications

Fire hazard class	P1b.8.2.5.4.
Core material	Copper
Insulation material	PVC plasticate
Sheath material	PVC plasticate with reduced flammability
Nominal cross-section of conductors	0.20; 0.35; 0.5; 0.75; 1.0; 1.2; 1.5; 2.5; 4; 6 mm²
Number of pairs	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24, 27, 30, 37, 40, 44
Number of cores	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24, 27, 30, 37, 40, 44, 48, 52, 61
Number of threes	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24
Number of fours	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Service life	At least 30 years
Length	in consultation with the customer m
Screen type	individual screens

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
