Universal instrumental cables KUIN ng(A)-FRHF xx EPS Available for Import

Universal instrumental cables KUIN ng(A)-FRHF xx EPS

Installation Cables
Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

Available Models

Universal instrumental cables KUIN ng(A)-HF xx EPSE Universal instrumental cables KUIN ng(A)-FRLS xx EPSEC Universal instrumental cables KUIN ng(A)-FRHF xx EPSEB Universal instrumental cables KUIN ng(A)-FRHF xx PB Universal instrumental cables KUIN ng(A)-FR xx ET
Universal instrumental cables KUIN ng(A)-HF xx PEB Universal instrumental cables KUIN ng(A)-FRLS xx EVE Universal instrumental cables KUIN ng(A)-LS xx PsEK Universal instrumental cables KUIN ng(A)-FRHF xx PS Universal instrumental cables KUIN ng(A) xx EVK Universal instrumental cables KUIN xx EVB Universal instrumental cables KUIN ng(A)-LS xx PSEB Universal instrumental cables KUIN ng(A)-FRHF xx EPEC Universal instrumental cables KUIN ng(A)-FRHF xx P Universal instrumental cables KUIN ng(A)-HF xx PSE Universal instrumental cables KUIN ng(A)-FRLS xx PsB Universal instrumental cables KUIN ng(A)-HF xx EPSEB Universal instrumental cables KUIN ng(A) xx EVEB Universal instrumental cables KUIN ng(A) xx ETK Universal instrumental cables KUIN xx EVE Universal instrumental cables KUIN ng(A)-FR xx ETB Universal instrumental cables KUIN ng(A)-FRLS xx VB Universal instrumental cables KUIN ng(A)-FRHF xx PsB Universal instrumental cables KUIN ng(A)-LS xx VB Universal instrumental cables KUIN ng(A)-LS xx EPSB Universal instrumental cables KUIN ng(A) xx EVEC Universal instrumental cables KUIN ng(A)-LS xx EVE Universal instrumental cables KUIN ng(A)-LS xx PsK Universal instrumental cables KUIN ng(A)-LS xx EPSEB Universal instrumental cables KUIN ng(A)-HF xx PE Universal instrumental cables KUIN ng(A)-FRHF xx EPB Universal instrumental cables KUIN ng(A) xx ETEC Universal instrumental cables KUIN ng(A) xx VE Universal instrumental cables KUIN ng(A)-FR xx ETEB Universal instrumental cables KUIN ng(A) xx ETB Universal instrumental cables KUIN ng(A)-FRLS xx B Universal instrumental cables KUIN ng(A)-FRHF xx EPE Universal instrumental cables KUIN ng(A)-HF xx PEK Universal instrumental cables KUIN ng(A)-FRLS xx VK Universal instrumental cables KUIN ng(A)-FR xx TEB Universal instrumental cables KUIN ng(A)-FRHF xx EP Universal instrumental cables KUIN ng(A)-FRLS xx EVEK Universal instrumental cables KUIN ng(A)-FRLS xx PsEK Universal instrumental cables KUIN ng(A)-FRLS xx VE Universal instrumental cables KUIN ng(A)-HF xx PsB Universal instrumental cables KUIN xx B Universal instrumental cables KUIN ng(A)-HF xx EPB Universal instrumental cables KUIN ng(A)-LS xx EVEB Universal instrumental cables KUIN ng(A)-FRHF xx EPSEC Universal instrumental cables KUIN ng(A) xx EB Universal instrumental cables KUIN xx EVEB Universal instrumental cables KUIN ng(A)-FRLS xx EPSEB Universal instrumental cables KUIN ng(A)-FRLS xx EVK Universal instrumental cables KUIN ng(A)-FRLS xx EPSE Universal instrumental cables KUIN ng(A)-FRHF xx PSE Universal instrumental cables KUIN ng(A)-FRLS xx EPSK Universal instrumental cables KUIN ng(A)-FR xx ETEC Universal instrumental cables KUIN ng(A)-FRHF xx EPEB Universal instrumental cables KUIN ng(A)-FR xx T Universal instrumental cables KUIN ng(A) xx TEK Universal instrumental cables KUIN ng(A)-FR xx TC Universal instrumental cables KUIN ng(A)-FRLS xx EVEB Universal instrumental cables KUIN ng(A) xx ET Universal instrumental cables KUIN ng(A) xx VK Universal instrumental cables KUIN ng(A)-LS xx EPSEC Universal instrumental cables KUIN ng(A)-FRLS xx VEK Universal instrumental cables KUIN ng(A) xx TC Universal instrumental cables KUIN ng(A)-HF xx EPS Universal instrumental cables KUIN ng(A) xx ETE Universal instrumental cables KUIN ng(A)-HF xx PSEB Universal instrumental cables KUIN ng(A)-HF xx EPEB Universal instrumental cables KUIN ng(A)-FRHF xx PEB Universal instrumental cables KUIN ng(A)-LS xx VK Universal instrumental cables KUIN ng(A)-FR xx ETK Universal instrumental cables KUIN ng(A)-FRHF xx PsK Universal instrumental cables KUIN ng(A) xx T Universal instrumental cables KUIN ng(A)-LS xx EVB Universal instrumental cables KUIN ng(A)-FR xx TEK Universal instrumental cables KUIN ng(A)-FRLS xx EPSB Universal instrumental cables KUIN ng(A)-HF xx P Universal instrumental cables KUIN ng(A)-FRLS xx PS Universal instrumental cables KUIN ng(A)-LS xx B Universal instrumental cables KUIN ng(A)-LS xx EVK Universal instrumental cables KUIN ng(A) xx VEK Universal instrumental cables KUIN ng(A)-HF xx PsK Universal instrumental cables KUIN ng(A)-HF xx PC Universal instrumental cables KUIN ng(A)-FRHF xx EPSB Universal instrumental cables KUIN ng(A)-HF xx EP Universal instrumental cables KUIN xx EVEC Universal instrumental cables KUIN xx VK Universal instrumental cables KUIN ng(A)-FR xx ETE Universal instrumental cables KUIN ng(A)-FRHF xx PC Universal instrumental cables KUIN ng(A) xx TB Universal instrumental cables KUIN ng(A)-LS xx VEB Universal instrumental cables KUIN xx VEK Universal instrumental cables KUIN xx VEB Universal instrumental cables KUIN xx VE Universal instrumental cables KUIN ng(A)-FRHF xx EPSK Universal instrumental cables KUIN ng(A)-FRLS xx EVB Universal instrumental cables KUIN ng(A)-LS xx EPSE Universal instrumental cables KUIN ng(A)-FRHF xx EPSE Universal instrumental cables KUIN ng(A)-LS xx PsE Universal instrumental cables KUIN ng(A)-HF xx EPSK Universal instrumental cables KUIN ng(A)-FRLS xx PSE Universal instrumental cables KUIN ng(A)-FRHF xx EPK Universal instrumental cables KUIN ng(A)-HF xx EPEC Universal instrumental cables KUIN ng(A)-LS xx EPSK Universal instrumental cables KUIN ng(A)-HF xx EPSB Universal instrumental cables KUIN ng(A)-FR xx TE Universal instrumental cables KUIN ng(A)-LS xx PS Universal instrumental cables KUIN ng(A) xx TE Universal instrumental cables KUIN ng(A)-FRHF xx PEK

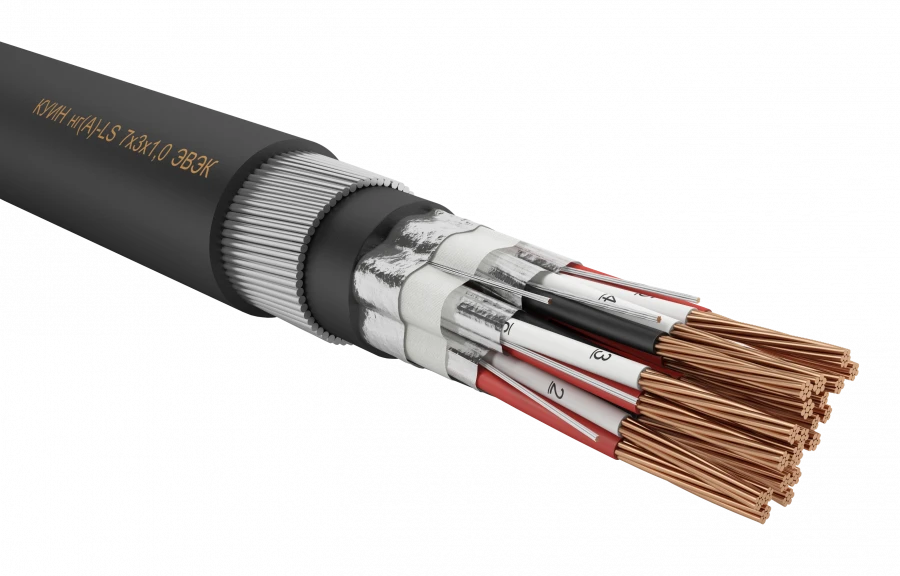

Universal instrumental cables with copper or copper tinned cores, fire-resistant, with cross-linked polyolefin insulation, with a sheath of halogen-free polymer composition, with individual screens, without armour. Intended for data transmission in the frequency range up to 4 MHz in measuring, control and regulating equipment, as well as for connection of AC electrical equipment with rated voltage up to 690 V and standard frequency of 50 or 60 Hz or DC electrical equipment with rated voltage up to 1000 V, for laying in rooms, cable constructions, channels, tunnels, ground (trenches), including places exposed to stray currents

Technical Specifications

Fire hazard class P1b.1.1.1.2.1.
Core material Copper
Insulation material crosslinked polyolefin
Sheath material Halogen-free polymer compositions
Nominal cross-section of conductors 0.20; 0.35; 0.5; 0.75; 1.0; 1.2; 1.5; 2.5; 4; 6 mm²
Number of pairs 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24, 27, 30, 37, 40, 44
Number of cores 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24, 27, 30, 37, 40, 44, 48, 52, 61
Number of threes 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18,19, 20, 21, 22, 24
Number of fours 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Service life At least 30 years
Length in consultation with the customer m
Screen type individual screens

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
