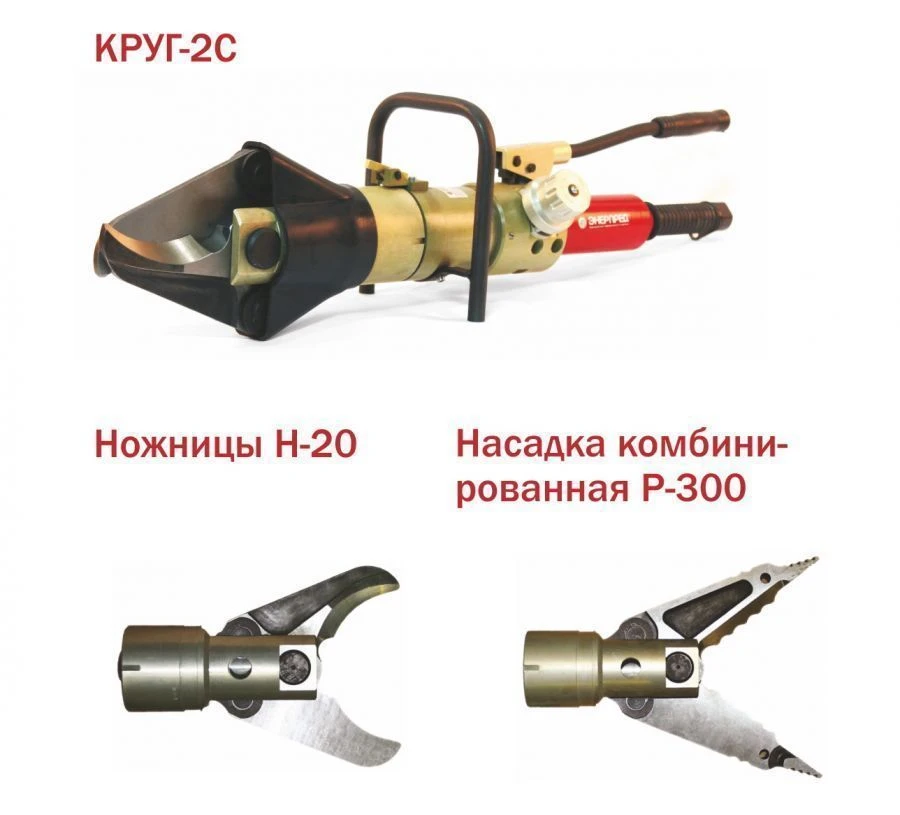

Universal Hydraulic Hand Tool for Emergency Situations - KRUH-2S

The tool is used for operative performance of various works in hard-to-reach places, in emergency situations, is completed with two quick-change nozzles: P-300 for sliding, lifting objects; H-20 for cutting. Overall dimensions (with scissor nozzle/ with combined nozzle), (BxLxH), mm - 191?834?222/191?921?230. Weight, not more, kg with scissors attachment - 14,4 with combined nozzle - 15.6 total - 21.9 Number of fixed positions of nozzles - 4 Power module KRUG-2 Nominal pressure, MPa (kgf/cm2): 70(714) Working fluid: MGE-10A OST 38 01 281 AMG-10 GOST 6794 Volume of filled hydraulic fluid, cm3: 230 Handle force, max, kgf: 35 Capacity, cm3/stroke: 1 stage - 9,3 2 stage - 1,27

Overall dimensions, (BxLxH), mm: 191?555?222 Weight, not more, kg: 8,1

Combination nozzle R-300 Allows moving, sliding and lifting of various objects with insignificant clearance
