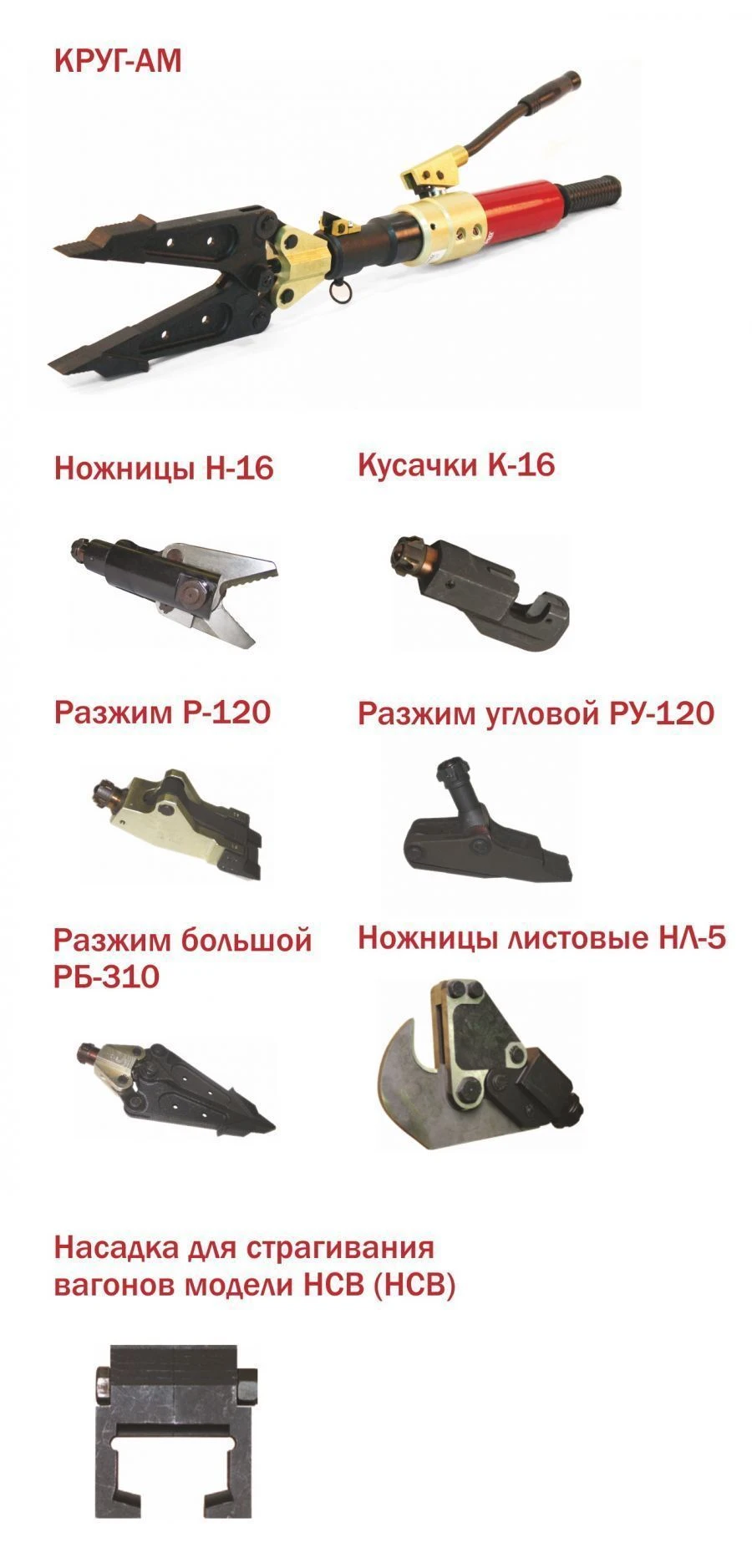

Universal Hand Hydraulic Tool Set KRUH-AM for Construction and Repair Applications

The set of manual universal hydraulic is designed for emergency-construction, repair and construction, installation and dismantling, as well as special works.
It is completed with a power module Krug-1 model, a set of spare parts, packaging (box or bag) and a set of replaceable attachments:
- scissors model N-16;
- clamp small model R-120;
- big clamp model RB-310;
- Pliers model K-16;
- Unclamp model RU-120;
- sheet shears model NL-5;
- wagon pulling device model NSV

Power module KRUG-1
Nominal pressure, MPa (kgf/cm2): 70 (714)
Volume of filled hydraulic fluid, cm3: 230
Handle force, max, kgf: 20
Capacity, cm3/stroke:
1 stage: 6.46
2 stages: 0,85
Overall dimensions (BxLxH), mm: 95×520×147
Weight, not more, kg: 5,6

Small clamp R-120
The special shape of the levers allows moving, sliding and lifting various objects with little effort.
