Universal Gas Drop Separator, Compact Model UGMK5

Available for Import

Universal Gas Drop Separator for Liquid Phase Sampling at Gas Wells - UGMK5

Special Purpose Equipment

Manufacturer: GAZPROM VNII GAZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

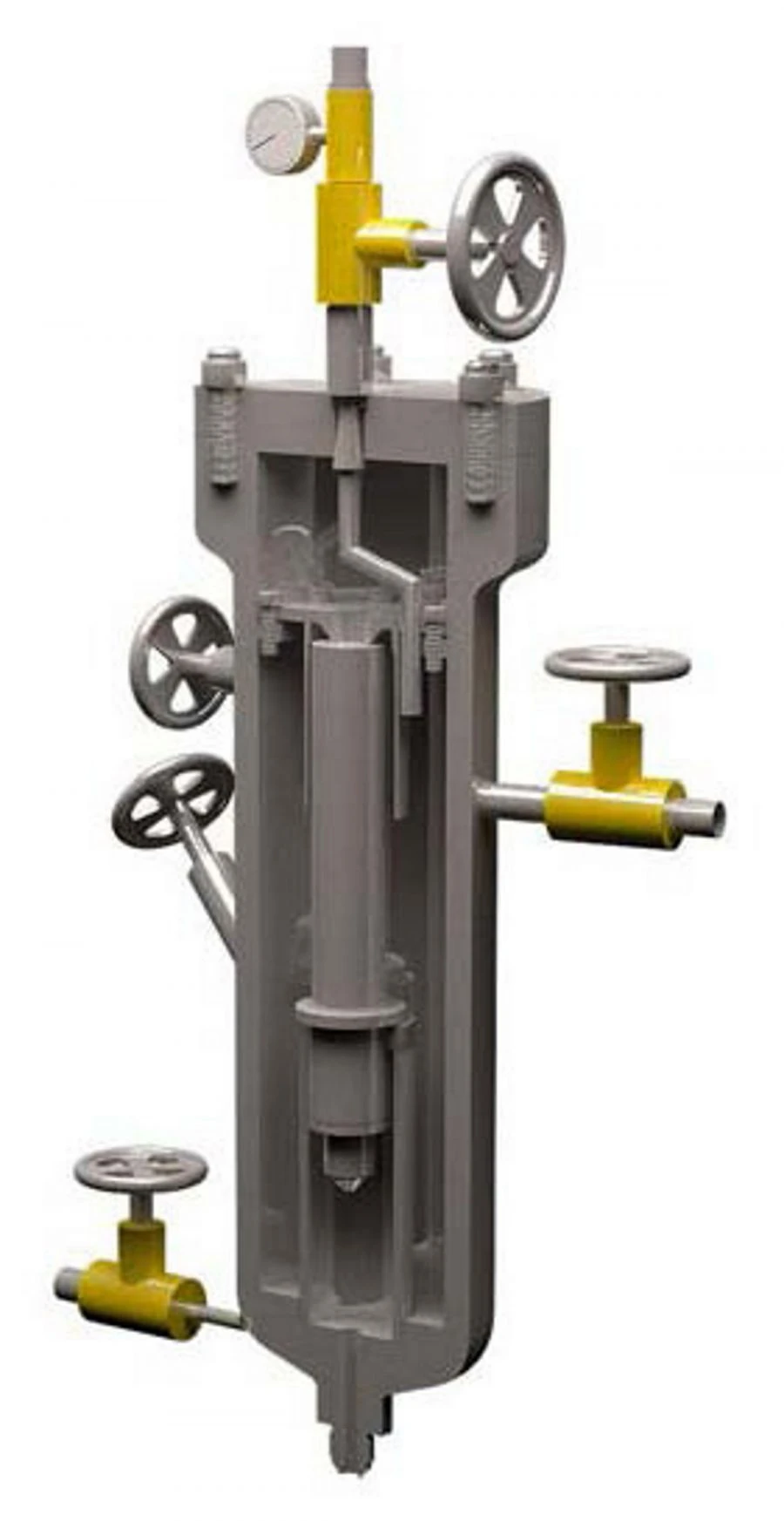

Droplet separator is designed for sampling the liquid phase at the wellhead of gas wells, on plumes and assessing its quantity in the gas. The droplet separator is a small-sized separator of vortex type, in which the process of separation of liquid phase from the gas flow takes place. The sampling medium is natural and associated gas from wells. The amount of mechanical impurities in the measured medium must not result in total abrasion and corrosion wear of more than 0.1 mm per year.

Specifications

Service life, at least

20 year

Weight, not more

19.8 kg

Operating temperature

-30...40 °C

Dimensions (DxWxH)

350x176x114 mm

Usable volume, not less than

0.9 l

Operating position

Vertical

Duration of sampling

10...300

Temperature of the medium

-30...40 °C

Volumetric capacity

0.15...0.5

Working pressure

25 MPa
