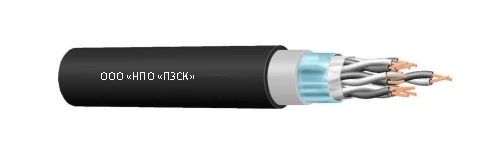

Universal Fire-Resistant Power Cable KRUEL-SK-(E)T(E)(B,K,S)-(v)-ng(A)-FR

Available for Import

Universal Fire-Resistant Power Cable KRUEL-SK for Safe Electrical Installations

Copper Power Cables 1kV

Manufacturer: LLC "NPO "PZSK"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Universal power cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c)-ng(A)-LS Universal power cable KRUEL-SK-(E)V(E)(B,K,S)-(c) Universal power cable KRUEL-SK-(E)V(E)(B,K,S)-(c)-ng(A)-FRLSLTx Universal power cable KRUEL-SK-(E)Rp(E)(B,K,S)-(c)-ng(A)-LS Universal Power Cable KRUEL-SK-(E)Pv(E)(B,K,S)-(c)-ng(A)-FRHF

Universal Power Cable KRUEL-SK-(E)R(E)(B,K,S)-(c)-ng(A)-HF Universal Power Cable KRUEL-SK-(E)T(E)(B,K,S)-(c)-ng(A) Universal power cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c)-ng(A)-HF Universal Power Cable KRUEL-SK-(E)Rp(E)(B,K,S)-(c)-ng(A)-FRLS Universal power cable KRUEL-SK-(E)P(E)(B,K,S)-(c)-ng(A) Universal power cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c)-ng(A)-FRLS Universal power cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c)-ng(A)-FRHF Universal power cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c) Universal Power Cable KRUEL-SK-(E)V(E)(B,K,S)-(c)-ng(A) Universal Power Cable KRUEL-SK-(E)Ps(E)(B,K,S)-(c)-ng(A)

Description

Cable universal power cable fire-resistant, not spreading combustion, with cores made of copper, or copper coated, or aluminium, or aluminium coated wires, with the number of cores from 1 to 10, nominal cross-section of cores from 1.0 to 1000 mm2, with combined insulation, consisting of a fire-resistant barrier, made of 2 mica-containing tapes and thermoplastic elastomer insulation, shielded or unshielded, armoured or unarmoured, for rated voltage of 660 V and 1000 V AC 50 Hz or DC 1000 V and 1500 V, designed for transmission and distribution of electric energy in networks and electrical installations. Cables are used for connection of stationary consumers, as well as power connection of mobile equipment. Cables are allowed to be used in explosive environments and at underground facilities, provided they meet the requirements for design and technical characteristics.

Specifications

Mark

KRUEL-SK-(E)T(E)(B,K,S)-(c)-ng(A)-FR

Design

Multiconductor TWAs (m), single wire TWAs (o), round TWAs (k), sector or segmental TWAs (c)

Cable shape

Round, flat

Core material

Copper, tinned copper(l), aluminum (A), aluminum alloy (As)

Insulation material

Thermoplastic elastomer (T)

Sheath material

Water-absorbing elements (c), filled with silicone compound (pz)

Core diameter

1.13...41.6 mm

Sheath material

according to cable version

Nominal voltage

1000 V

Number of conductive cores

1-10

Presence of individual and/or shared metal shielding

No shield, copper tape shield (E), copper wire shield (Em), tinned copper wire shield (El), combined, aluminofoil composite material and tinned copper wire shield (Ek)

Availability of reservations

No armor, armor made of galvanized steel bands (B), aluminum alloy bands (Ba), corrugated tape laminated with polymer (Bg), galvanized steel wires (K), galvanized steel wires over outer sheath (Kg), wires of

Outer sheath material

according to cable version

Fire hazard class

P1b.1.2.5.4.

Nominal cross-section of conductive cores

1...1000 mm²

Operational design

M, X, UV, Tc (Tc125, Tc200)

Climatic version

UHL, UHL1, CHL, CHL1, AHL, T

Ambient temperature during cable operation

-60...50 °C

Size (Number of cores x Cross-section)

1x1.0 - 1x1000; 2x1.0 - 2x240; 3x1.0 - 3x400; 4x1.0 - 4x400; 5x1.0 - 5x240; 6-10x1.0-16

Number of cores

1...10 pcs

Number of wires in the core

1...53 pcs

Number of conductive cores

1...10

Rated AC voltage

1 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
