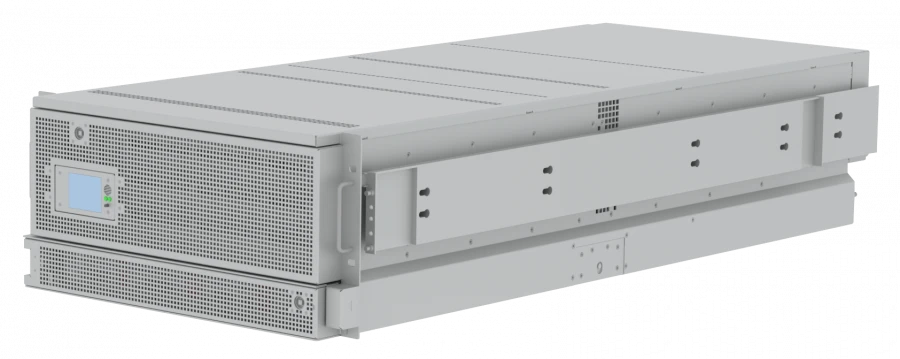

Universal Elbrus-based Server "Yakhont-UBM E128" (NIKA.466533.342-02)

Available for Import

Universal Elbrus-based Server "Yakhont-UBM E128" for IT Infrastructure Applications

Digital Computing Systems

Manufacturer: NT CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Server based on a single-processor platform "Elbrus". Elbrus-8C processors act as central processors. The product can be used to build IT-infrastructure and dedicated placement of applications and services, as well as a security server, management, to ensure the work of e-mail, electronic document management system and for data storage.

It is possible to connect existing FC infrastructures and disc shelves to create data processing systems under the control of Russian equipment, as well as to use it as part of clusters for parallel and fault-tolerant computing. The enclosure design provides for the possibility of installing up to 128 hot-swappable 3'5 (LFF) discs. The enclosure is equipped with a protection system against unauthorised access to the internal space (front panel and enclosure cover tampering sensors).

It is possible to change the configuration of the server by using different expansion cards to meet the requirements of the customer.

Specifications

Number of processor cores

8 pcs

RAM size

Maximum total supported RAM capacity

Maximum number of processors

1 pcs

Server type

Rach

Number of installed processors

1 pcs

Number of cores of each installed processor

8 pcs

Number of slots for RAM modules

4 pcs

Capacity of each installed RAM module

Total amount of installed RAM

Supports RAM error detection and correction function

Available

Redundancy level of installed cooling units

N+1

Maximum number of drives per enclosure

128 pcs

Number of LFF (3.5) drive slots on the front panel

8 pcs

Availability of cable laying device

absent

Availability of rails for installation in the telecommunication cabinet

Included

Housing type

Rack, 5U

Protective safety panel

Available

Dedicated port for remote server management

Available

Remote server management system

Available

Availability of an integrated video adapter

Available

Availability of FSB-certified trusted boot tools

absent

Availability of FSTEC-certified trusted boot tools

absent

Number of occupied units in the rack

Supported drive interface

SAS/SATA

Number of USB 2.0 ports

USB port layout type

External, on rear panel

Location type RS-232

External, on rear panel

Number of power supplies installed

3 pcs

Number of hot-swappable power supplies installed

3 pcs

Redundancy level of installed power supplies

N+1

Network port type

RJ45

Number of Ethernet network ports

3 pcs

Ethernet network port speed

Base frequency of each installed processor (not including dynamic frequency change technology)

1300

Type of product according to PP RF 616

Computational electronic digital machines, supplied as systems for automatic data processing

Front panel and indication

Available

Power subsystem

220V, N+1, 2000W

Keyboard availability

absent

Monitor availability

absent

Case Form Factor

Rack, 5U

Base frequency of the processor

1.3

Internal power supply

2000 W

Processors

Elbrus-8C

Form factor

Rack, 5U

Availability of a mouse manipulator

absent

Connection interface

RJ45

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
