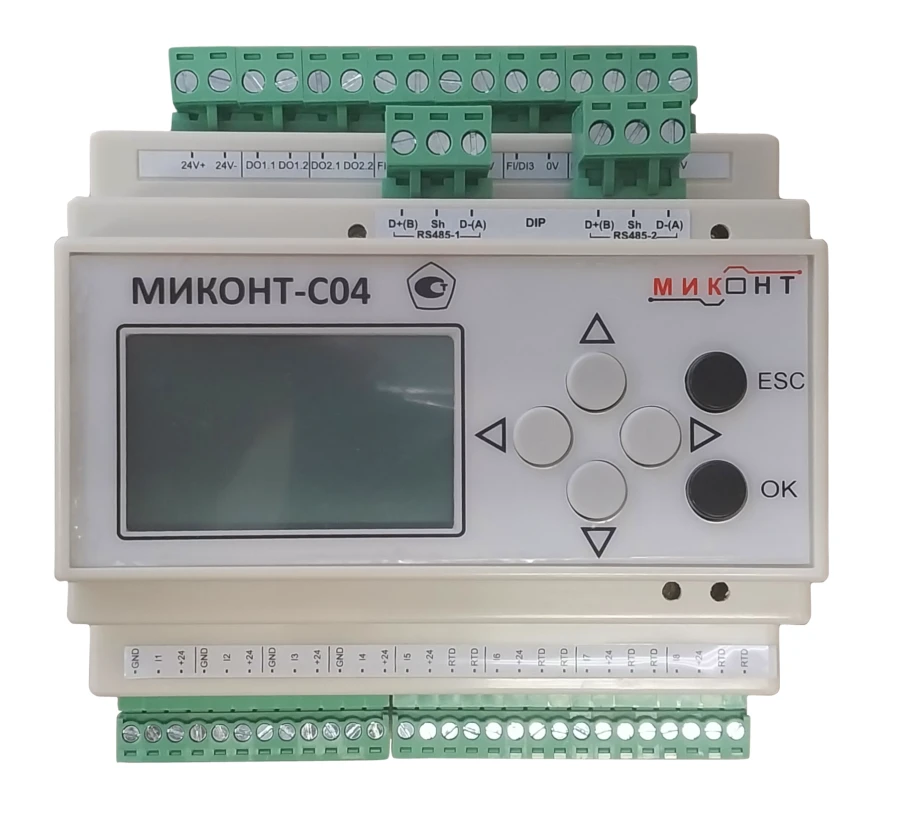

Universal Controller for Energy Resources Monitoring - MIKONT-C04

Commercial and operational accounting of energy resources and energy carriers, such as water, steam, heat, natural and associated gas, as well as oil and petroleum products.Control and management of technological processes, technical systems and equipment, both in stand-alone mode and as part of hierarchical control systems.Measurement, collection, processing, as well as transfer of information to the next level through various communication channels.Local means of monitoring, control, protection and blocking.Power supply: 24 VDC.Communication interfaces: RS-232; 2 x RS-485; Ethernet 100 mbit/s.USB interface.Analogue inputs: channels for conversion of unified analogue signals (DC 0 - 5 mA, 0 - 20 mA, 4 - 20 mA) - 8 pieces.Of these channels with the possibility of connecting thermistors GOST 6651 (-200850 C 50M, 100M, 50P, 100P, Pt100, Pt500, etc.) - 4 pcs.Frequency/discrete inputs:(0 - 10 kHz) 24 VDC - 5 pcs;(0 - 200 Hz) 24 VDC - 2 pcs.Measurement error on frequency channels: 0,1 %.Operating temperature range: 0 - +60 C.
