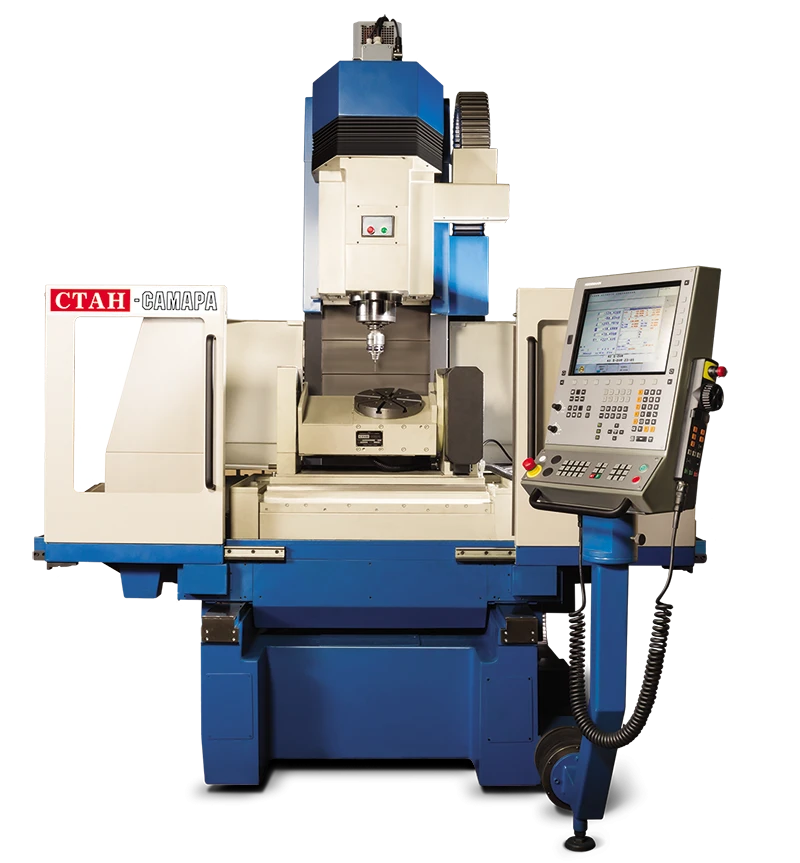

Universal co-ordinate boring machine of particularly high precision SKR 400

Metal Boring Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Universal coordinate boring machine of especially high precision SKR 400

Technical Specifications

Type of product according to PP RF 616	Coordinate boring machines
Height	3000 mm
Width	2400 mm
Length	3000 mm
Weight	4300 kg
Power consumption	7 kW
Distance between slots	80
Groove width	14
Longest table stroke, transverse	400
Maximum table stroke, longitudinal	630
Longest stroke of spindle headstock	500
Distance from the end face of the vertical spindle to the working surface of the table	100...600
Spindle outreach (distance from stand to spindle axis)	450 mm
Inner spindle taper	40 (7:24)
Largest taper size of the tool to be clamped.	morse 4
Spindle speed (infinitely variable)	6.3...6000
Working feeds of table, spindle headstock	1...6000
Speed of fast movements of table, spindle headstock	12000
Largest machining diameter for drilling in steel	30 mm
Largest machining diameter, boring	250 mm
Maximum weight of the workpiece	400 kg
Highest axial force on the spindle	4000
Highest torque on the spindle	70
Main motion drive power not less than	7.5 kW
Dimensions of the table working surface, width	400
Largest machining diameter, boring (for machine with automatic tool change)	130
Machine weight with automatic tool change	4700
Type of equipment	Coordinate boring machines
Dimensions of the table working surface, length	800
Number of table T-slots	5
Machine weight without attachments	4300 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
