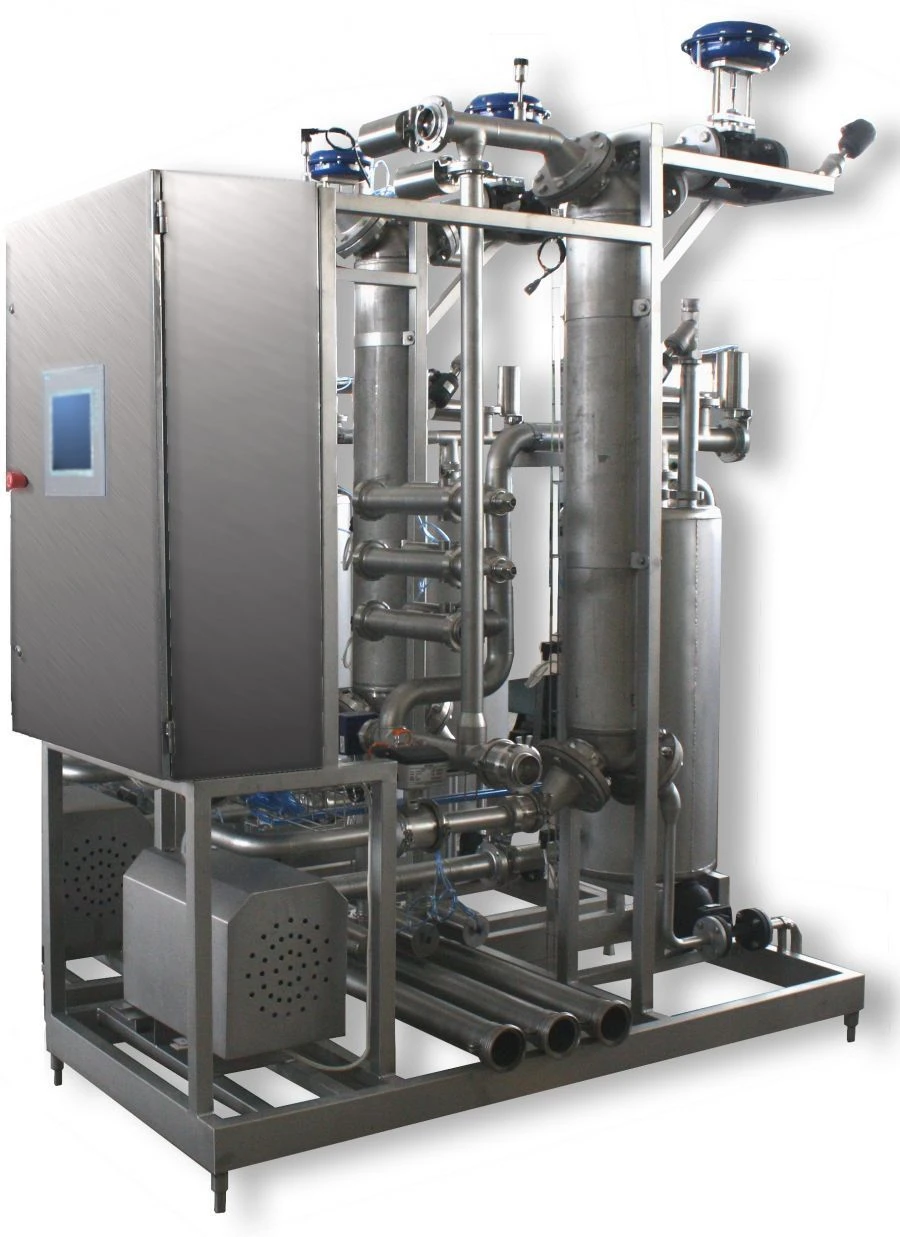

Universal circulating washing stations of UCMS brand and their versions (modifications)

SIP washers are designed for circulating washing of tanks, pipelines, heat exchangers, pasteurisation and cooling units and other equipment.
Capacity up to 10 m3/h
Method of heating the washing solution -Smeevicheskaya jacket in the tank (heat-exchange apparatus - optional). Tank two/three/four-sectional (thermo-insulated tank, divided into sections, inner bulb - stainless steel AISI304/316; partition steel AISI30/316; lining - stainless steel AISI430/304. Equipped with vibration limit sensors, thermal resistance, WBI sensor.
Temperature of alkaline and acidic washing solutions-75-80?C, 65-70?C
Temperature of cold water -10-20?C
Warm water temperature -34-40?C
Sterilising water temperature -90-95?C
Consumption of tap cold water, average, not more than - 17,6 m³/h,
Occupied area, not more than - 18,5 m²,
Weight, not more than -3560 kg,
Modular system -No
Washing solution application- In manual mode.
Method of control...
