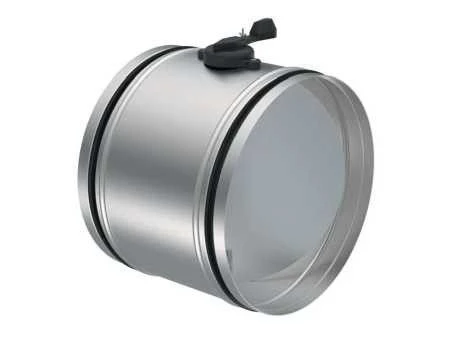

Universal Air Throttle Valve Kanal-DKK for Efficient Airflow Management

The valves have a circular cross-section and have a round body with a simple sheet vane mounted inside, truncated on the sides. This design provides a proportional dependence of the air flow rate through the valve on the angle of rotation of the vane. The structural elements of the valve are made of galvanised steel.

The blade axis is mounted on polyamide bushings. A manual actuator is used as the actuating mechanism. To adjust the position of the blade, the manual actuator provides for position locking.

The valve remains functional regardless of spatial orientation. <ul> <li>- are designed to regulate the flow rate of supply and exhaust air in duct ventilation and air conditioning systems;</li> <li>can be used for recirculation air;</li> <li>the treated air must be prepared, must not contain solid, fibrous, sticky or aggressive impurities;</li> </ul>-permissible content of dust and solid impurities not exceeding 0.1 g/m3; -permissible temperature.....
