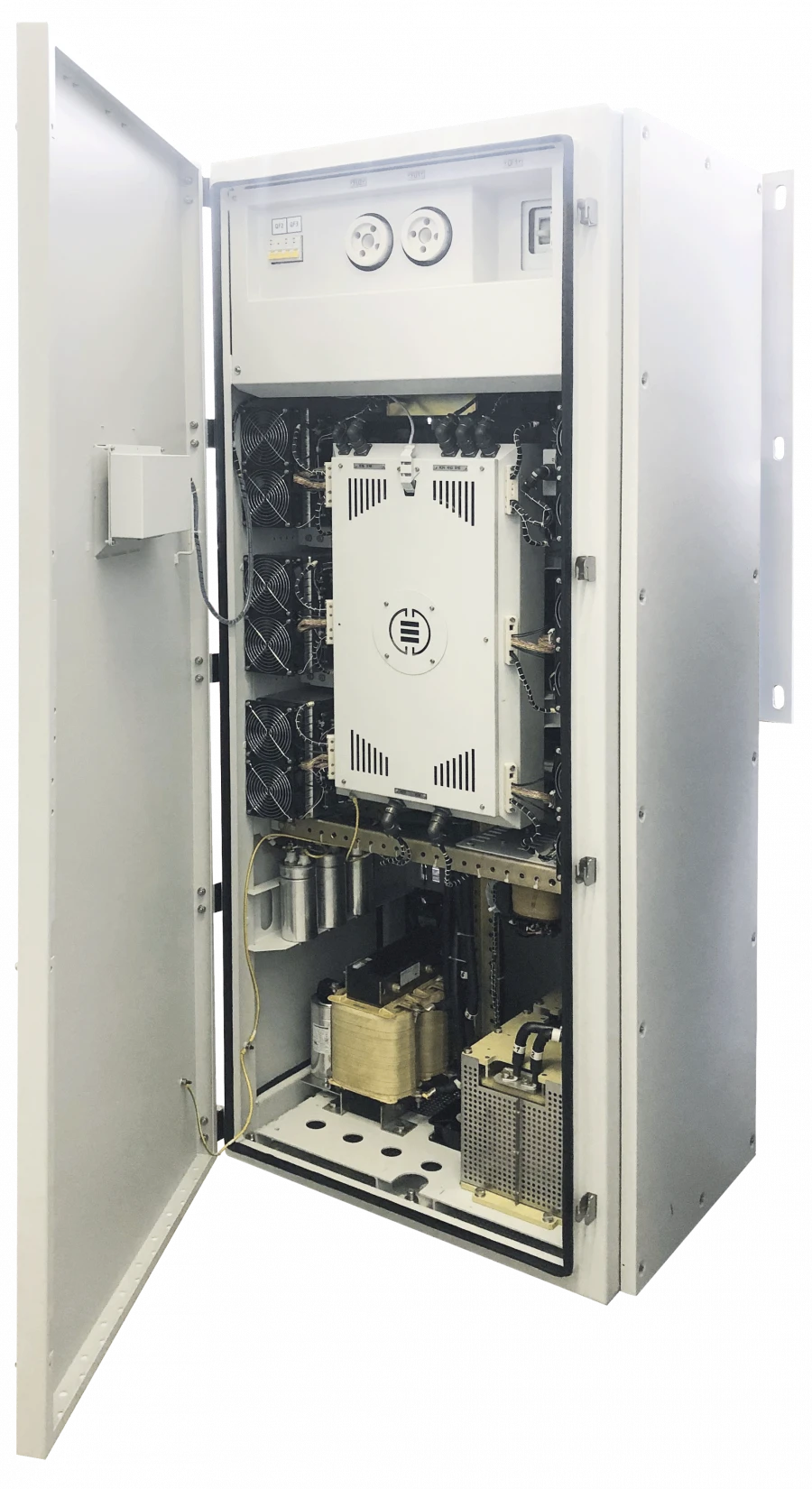

Uninterruptible power supply source (Unit) ABP-230-50

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The single-feeder UPS is designed to create an uninterrupted three-phase network with voltage 230/380 V, frequency 50 Hz to supply especially critical consumers. Power supply is carried out from three-phase AC network with voltage 380 V, frequency 50 Hz, with the possibility of organising bypass. Voltage formation is provided by means of static converter I-TTPT-150-220-50-B. Uninterrupted operation is provided by means of the AB cabinet.
The device ABP-230-50 provides:
-galvanic isolation of the output power supply circuits from the input power supply circuit by means of transformer TC3M-63-OM5 380/400 D-Un1, as well as signalling circuits from the power supply circuits;
-accumulator support by means of lead-acid batteries;
-protection of the output feeder, in case of:
presence in the output power supply circuits of overload currents from 1.1 Inom to 1.2 Inom with duration not less than (12 ± 2) s;
short-circuit currents in the output circuits of the power supply exceeding 1.2 INom with duration of at least (12 ± 2 s)...

Technical Specifications

Rated output current	125 A
EFFICIENCY	89 %
AB capacity	45.6
Nominal voltage	230 V
Output power, kVA	SBVVBG
AC input voltage	380 V
Output voltage	380 V
Parallel work	Armoured glass
Remote monitoring	Armoured glass
Protection against reverse current	Armoured glass
Earthquake-proof version according to MSK-64 scale	Armoured glass
RFI interference level filter	Armoured glass
Isolation transformer at the rectifier input	Armoured glass
Isolation transformer of the standby input and rectifier	Armoured glass
Input power factor corrector	Armoured glass
Thermal compensation of battery recharge voltage	Armoured glass
Isolation monitoring of load output circuits	Armoured glass
Group spare parts	Armoured glass
Degree of protection	IP21
Degree of protection (IP)	21

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
