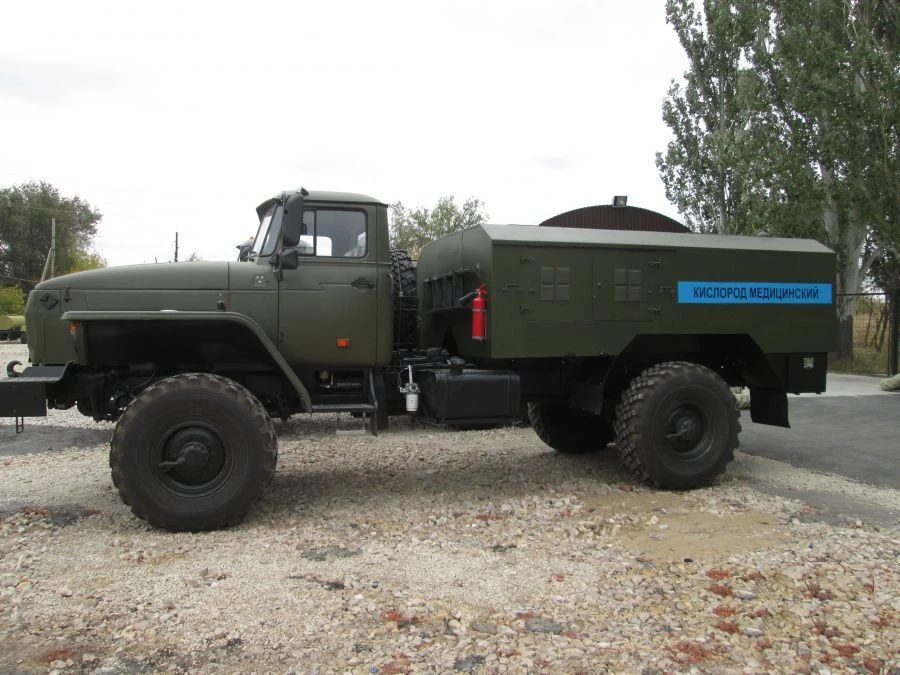

UNIFIED GAS-refuelling station UGZS.M-KR on Ural 43206-1151-71 chassis.

Unified gas-charging station UGZS.M-KR is designed for charging on-board systems of aircrafts with medical oxygen.
The equipment of the station allows to perform the following operations:
a) charging the station from an external source of compressed gas;
b) charging of aircraft onboard systems from the station cylinders by bypass and by means of a compressor;
c) pumping gas from one group of station cylinders to another.
The UGZS.M-KR station is operated by two specialists: a vehicle driver and a specialist operator who has undergone special training. The station is not intended for operation in explosive environment.
Base of electric unit URAL-43206
Station capacity at ambient air temperature +20?? and pressure 760 mm Hg, gas pressure at compressor inlet 12,0 MPa (120 kgf/cm2) and compressor shaft speed 8,33-1 (500 rpm), nm3/h, not less than85
Working pressure of dispensed gas, MPa (kgf/cm2)from 0.1 to 0.55 (1-5.5)3.0+0.6 (30+6) 35.0±1.0 (350±10)
Working gasAcid...
