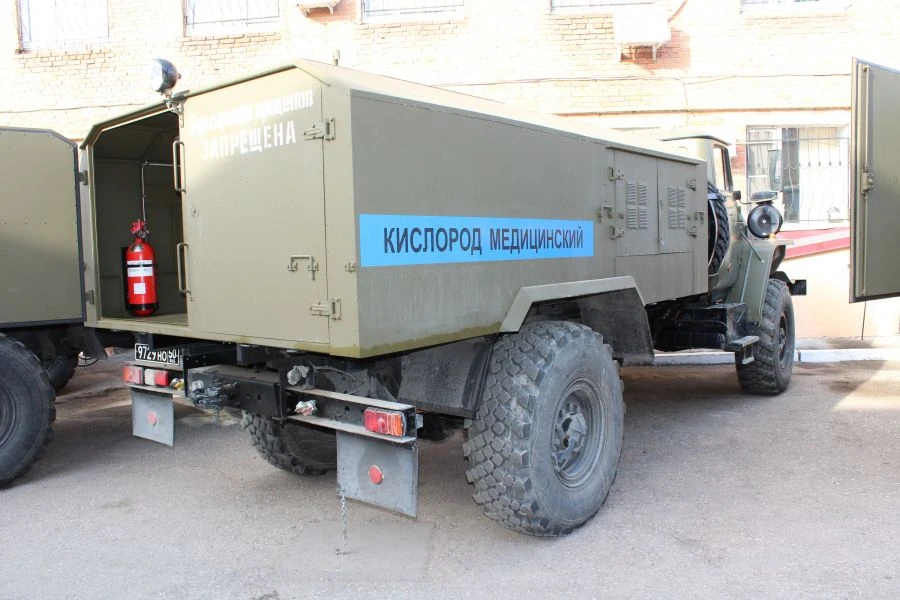

UNIFIED GAS-CHARGING STATION UGZS.M-CR

Unified gas-charging station UGZS.M-KR is designed for charging on-board systems of aircrafts with medical oxygen.
The station equipment allows to perform the following operations:
a) charging the station from an external source of compressed gas;
b) charging of aircraft onboard systems from the station cylinders by bypass and by means of a compressor;
c) pumping gas from one group of station cylinders to another.
The station is not intended for operation in explosive environment.
Working gasMedical oxygen
Ambient air temperature at which the station operation is guaranteed, oÑ
From minus 40 to +50
Number of cylinders at the station, pieces18
Capacity of one cylinder, m3 (l)0,04 (40)
Overall dimensions of the station, mm, not more
- length 7800
- width 2500
- height 2805/2952
Total mass of filled station 11175/11409
