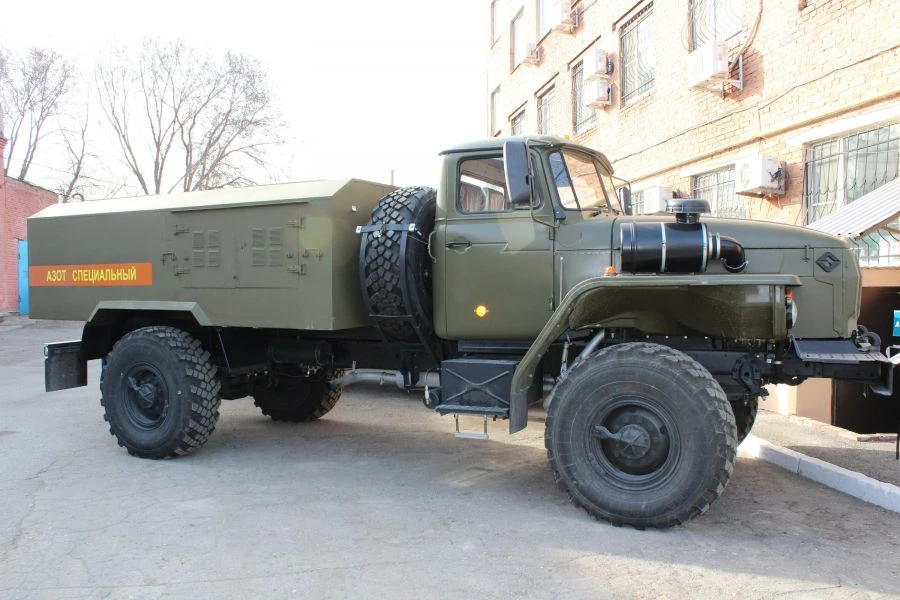

Unified gas-charging station UGZS.M-AR on the basis of Ural 43206 chassis of modifications: 43206-1151-61, 43206-1151-63, 43206-

Unified gas-charging station UGZS.M-AR is designed for charging on-board systems of aircrafts with special nitrogen.
The station equipment allows to perform the following operations:
a) charging the station from an external source of compressed gas;
b) charging of aircraft onboard systems from the station cylinders by bypass and by means of a compressor;
c) pumping gas from one group of station cylinders to another.
The UGZS.M-AR station is operated by two specialists: a vehicle driver and a specialist operator who has undergone special training.
Working gasNitrogen special
Number of cylinders at the station, pieces18
Capacity of one cylinder, m3 (litre)0.04 (40)
Overall dimensions of the station, mm, not more
- length 7800
- width 2500
- height on the car cabin 2805/2952
Total weight of the filled station, kg, not more than 11175/11409
