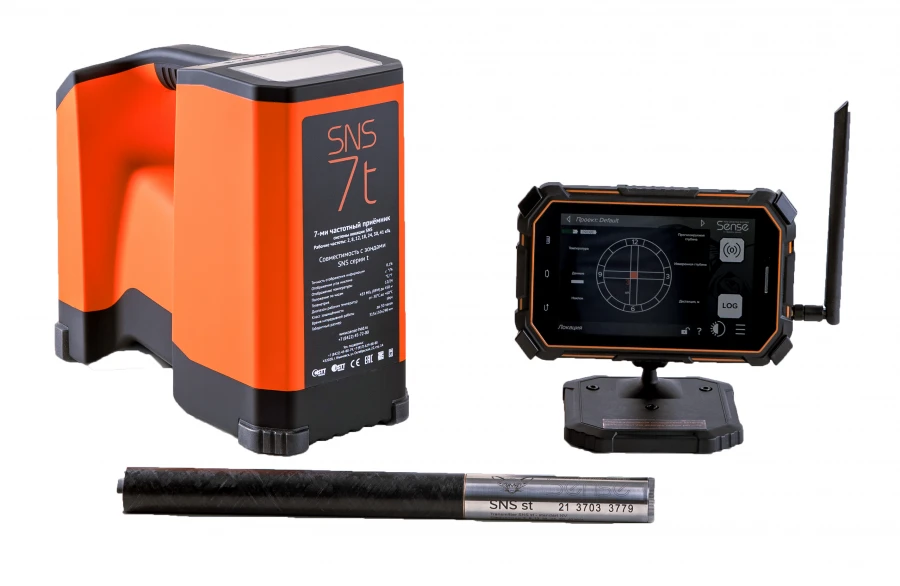

Underground Location System for Horizontal Drilling - SNS 7t NV

The system is designed for permanent determination of the drill head position underground during horizontal directional drilling by the parameters of the electromagnetic field generated by the probe located near the drill head. Technical characteristics: Operating frequencies 2, 8,12, 18, 24, 30, 41 kHz; 3 modes of probe power; maximum depth with wireless probe - up to 40 metres in high power mode; telemetry radius 500 m, with one repeater - 1000 m; accuracy of inclination angle determination 0,1%; determination of the drill head position "by clock face"
