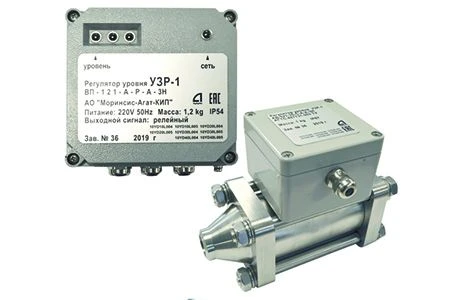

Ultrasonic Level Regulator UZR-1 for Accurate Level Control in Tanks

UZR-1 ultrasonic level regulator is designed to control and regulate the level of non-boiling media in apparatus and vessels of stationary and ship installations. Ultrasonic level regulators UZR-1 meet the requirements of the Rules of the Russian Maritime Register of Shipping and the Russian River Register, have a version for use at nuclear power facilities. The principle of operation is based on the use of the method of pulse probing by ultrasound with time and frequency selection, which consists in comparing the time of ultrasonic signal passage through the working gap of the sensitive element of the primary transducer, filled with the controlled liquid or gas, with the time interval produced in the regulator itself. Type of explosion protection:

• - primary transmitter: "0 Ex ia IIC T6";
• secondary transmitter: [Ex ia] IIC;

• - primary transmitter: IP67;
• secondary converter: IP54, IP67
